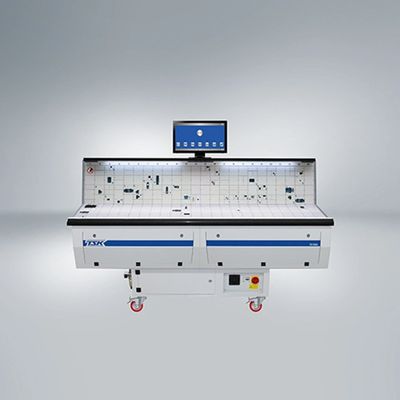

Komax - Model TS1600 - Standard Horizontal and Vertical Test Grid System

SHARE

With a standard horizontal and vertical test grid, the TS1600 test system allows for a higher number of test adapters, resulting in improved handling during adaptation. The TS1600 test system is designed to test medium and large wire harnesses while meeting the high technical requirements of quality assurance in the cable assembly and automotive supplier industry.The system features an ergonomic arrangement of the test adapters in the horizontal and vertical test grid, ensuring efficient and safe testing. The test grid inclination is 15° horizontally and 10° vertically, providing an ergonomic work area.In addition, the system allows for variable positioning of the test adapters and standardized interfaces.The TS1600 test system can be combined with all cable testers and can be configured according to customer requirements. Other models and sizes are also available upon request.

Most popular related searches

power supply unit

DC power supply

low voltage test

Metric

TS1600 1200x800 mm

Dimensions/height min.: 1490 mm
Dimensions/height max.: 1540 mm
Dimensions/width min.: 1350 mm
Dimensions/width max.: 1570 mm
Depth max.: 1050 mm
Total weight, without test adapter (modules) approx.: 220 kg
Number of system segments: 1
Voltage (AC), input min.: 90 V
Voltage (AC), input max.: 260 V
Frequency, input min.: 50 Hz
Frequency, input max.: 60 Hz
Voltage, input, connector: Safety plug (240 V, 16 A, 3-pin)
Voltage, input, connector optional: CEE plug (400 V, 16 A, 5-pin)
power supply 1, voltage (DC): 24/12 V
power supply 1, current (DC) max.: 40 A
power supply 2, voltage (DC): 5 V
power supply 2, current (DC): 10 A
Total power, standard (depending on the number of power supply units) max.: 1500 W
Ambient temperature, operation min.: +10 °C
Ambient temperature, operation max.: +40 °C
Ambient temperature, storage min.: -10 °C
Ambient temperature, storage max.: +60 °C
Air humidity non-condensing min.: 40 %
Air humidity non-condensing max.: 75 %
Emission sound pressure level (according to DIN 45635) max.: 80 dB
Protection class: IP 10
Operating height (feet above sea level) max.: 2000 m
Test grid width: 1200 mm
Test grid depth, horizontal: 400 mm
Test grid depth, vertical: 400 mm
Test grid area: 0.96 m²
max. number of test adapters (modules) to be installed for size100x100: 96
Test grid inclination, horizontal: 15 °
Test grid inclination, vertical: 10 °
Maximum permissible load on the test grid: 1,1 / 100 g/cm²
Test points min.: 128
Test points max.: 1280
Cable tester CT30ix: yes
Operating pressure (according to ISO 8573-1: 5/5/4) min.: 5 bar
Operating pressure (according to ISO 8573-1: 5/5/4) max.: 7 bar
Compressed-air connection: Kupplungsstecker Rectus G1/4 26AF AW13 bar
Pneumatic connections min.: 40
Pneumatic connections max.: 80

Imperial

TS1600 47.24x15.74in

Dimensions/height min.: 58.66 in
Dimensions/height max.: 60.62 in
Dimensions/width min.: 53.14 in
Dimensions/width max.: 61.81 in
Depth max.: 41.33 in
Total weight, without test adapter (modules) approx.: 485.01 lb
Number of system segments: 1
Voltage (AC), input min.: 90 V
Voltage (AC), input max.: 260 V
Frequency, input min.: 50 Hz
Frequency, input max.: 60 Hz
Voltage, input, connector: Safety plug (240 V, 16 A, 3-pin)
Voltage, input, connector optional: CEE plug (400 V, 16 A, 5-pin)
power supply 1, voltage (DC): 24/12 V
power supply 1, current (DC) max.: 40 A
power supply 2, voltage (DC): 5 V
power supply 2, current (DC): 10 A
Total power, standard (depending on the number of power supply units) max.: 1500 W
Ambient temperature, operation min.: +50 °F
Ambient temperature, operation max.: +104 °F
Ambient temperature, storage min.: +14 °F
Ambient temperature, storage max.: +140 °F
Air humidity non-condensing min.: 40 %
Air humidity non-condensing max.: 75 %
Emission sound pressure level (according to DIN 45635) max.: 80 dB
Protection class: IP 10
Operating height (feet above sea level) max.: 6561 ft
Test grid width: 47.24 in
Test grid depth, horizontal: 15.74 in
Test grid depth, vertical: 15.74 in
Test grid area: 10.33 ft²
max. number of test adapters (modules) to be installed for size100x100: 96
Test grid inclination, horizontal: 15 °
Test grid inclination, vertical: 10 °
Maximum permissible load on the test grid: 2,42 / 15,5 lb/in²
Test points min.: 128
Test points max.: 1280
Cable tester CT30ix: yes
Operating pressure (according to ISO 8573-1: 5/5/4) min.: 72.51 psi
Operating pressure (according to ISO 8573-1: 5/5/4) max.: 101.52 psi
Pneumatic connections min.: 40
Pneumatic connections max.: 80
