Without periodic replacing, reducing user investment
Conventional SVC Is very sensitive to system parameters When the parameters is set unreasonable or changed after a period of time, it will probably cause resonance amplification and even accidents If system voltage fluctuates seriously, compensation performance will be effected and loss will be increased, which requires apenodic maintenance for capacitor banks

Based on IGBT technology and as the controlled current source device, SVG could avoid harmonic amplification and resonance and it`s not sensitive to system parameters to guarantee safety and stability.

Single cabinet configured with 500KVar capacity help save space for users.

One cabinet (600mmx800mmx2200mm) could contain five 100KVar modules.
With the increasing of productivity, customers` power distribution
system space becomes more and more precious.

Multi-monitoring mode, brings you much richeruser experience
Sinexcel SVG is equipped with diverse monitors and control modes for different types, including 4 3 inch colortouch screen, 7 inch HMI LCD touch screen and mobile terminal control system, multiple open options for customers

Wide compensation range, both inductive and capacitive compensation
SVG is capable lo compensate bidirectional inductive and capacitive reactive power from PF-1-PF+1. Therefore it could be applied not only in the sites with pure inductive loads but also capacitive loads such as wind farms, capacitive IDC. ports and so on.

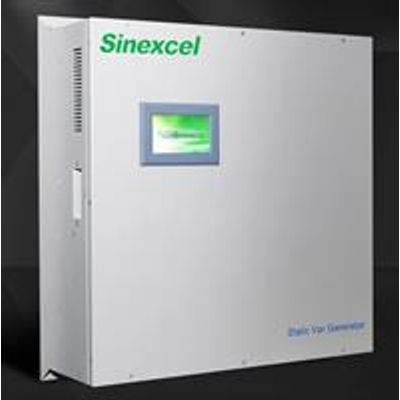

Shenzhen - Static Var Generator (SVG)
