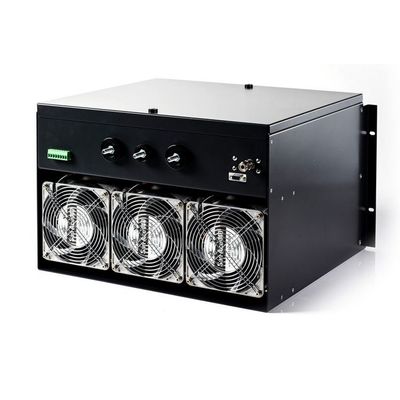

Intelligent Energy - Model IE-Power -4 -Stationary Fuel Cell System
IE-POWER 4 is Intelligent Energy’s fuel cell module for power generation applications, such as stationary power, micro-grids, telecoms, and critical infrastructure.
Running on hydrogen and oxygen from the air, the IE-POWER 4 stationary fuel cell is designed as a self-contained power solution with all requisite balance-of-plant components to produce clean DC power in a power-dense and convenient package. The module has been designed with integrated 19-inch data rack mount points, enabling simple integration into existing systems.
The compact and modular unit can be deployed to deliver power for a wide range of electricity needs to keep your critical applications working, when you need them most.
Engineered to operate in a wide temperature envelope, the IE-POWER 4 is available in a range of configurations to meet customer requirements, with outputs of 24, 36, or 48 volts. The IE-POWER 4 is compact and lightweight to facilitate single operator use. It is a versatile, quiet, zero-emission power source for multiple industries and sectors, including:
- Portable power generators providing flexible and dependable off-grid power
- Backup power for telecoms and critical infrastructure
- Clean power for construction equipment – ideal diesel replacement ensuring daily high-performance operation
Hydrogen fuel capacity can be sized according to user power needs. Combined with rapid refuelling capabilities and zero-emission operation, hydrogen fuel cells offer a clear advantage over both battery-only and diesel power sources.
- Compact
- Robust
- Simple to integrate
- Zero maintenance, more efficient operations – lower TCO for your equipment
- Quiet operation
- Quick refuelling, increasing productivity
- Zero-emission, health benefits
- Eco friendly
- Off-grid power, such as micro-grids
- Range extender for battery banks
- Telecoms backup power
- Through life power: 4kW @ 48V or 2.88kW @ 24V
- Output voltage: 48V or 24V
- Rated current: 83A @ 48V or 120A @ 24V
- Fuel type: Hydrogen gas
- Fuel consumption: Less than 70g per kWh
- Mass: ~20kg
- Max. dimension: 450mm (W) × 300mm (H) × 500mm (D)
- Altitude: 0 – 4000m
- Operating ambient temp. range: +5°C to +40°C
