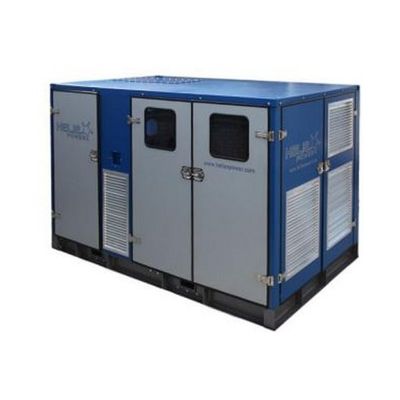

Heliex - Model HP204 up to 400kW -Steam Expander Generator Set

• Rugged screw expander technology
• Standalone packaged unit
• Industry standard key components
• Fully automated

Operating parameters;

• Electrical : 400V, 50Hz, 3ph+N, 480v, 60Hz, 3ph+N Option
• Ambient temperature : -10°Cto+45°C
• Ambient humidity : <95% tnon-condensing)
• Installation : Indoor or Outdoor
• Sound pressure level : <87dBA at 1 metre
• Steam mass flow rate range : Up to 15000kg/h
• Max. steam inlet temperature : 221 °C (saturated steam)
• Max. steam inlet pressure : 23.5 Bar A
• Max. inlet-outlet AP : 20 Bar
• Steam inlet dryness fraction : <97%

Dimensions and foundations :

• Dimensions : 3000 X 1850 X 2000 mm (LWH)
• Mass : Up to 9,000 kg
• Lifting and handling : Standard forklift pockets 180 x 80 mm, 1300 mm between centres
• Site foundation : Level load bearing surface 3500 X 2500 mm

Plant services and interconnections :

• Steam inlet : DN100, PN25
• Steam outlet : PN25 flange and depending on customer steam flow either DN150,200,250 or 300
• Compressed air supply : 7 bar q (Instrument air to ISO 8573.1 Class 2:3:1)
• Electrical output : 400V, 3 ph+N, continuous rating to suit generator protection device
• Electrical input : 400V, 3 ph+N
• Remote monitoring : Internet bridge (via internet cable or optional wireless GPRS / UMTS Modem). BMS or SCADA systems - MODbus over RS232, RS485, USB, Ethernet.
