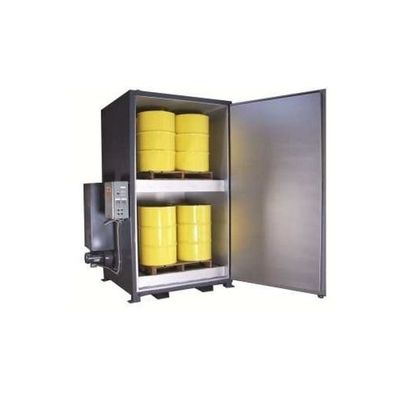

Sahara Hot Box - Model SV8 - Steam Powered Drum Heater
Model SV8 Steam Drum Heater is designed to accommodate 8 (55 gallon) drums or 2 standard (275 gallon) Tote. As opposed to model S8, model SV8 has a smaller footprint and stacks drums in a vertical manner. `Sahara Hot Box` Steam Drum Heaters (or Drum Ovens) are available with state-of-the-art digital controls with independent over-temperature protection. Units in a manifolded arrangement can be individually turned off when not heating,, perfect for your drum storage and drum heater needs.
Details
The Hot Box SV8 has many unique features:
- Rugged steel construction
- Portable; Just pick up with a forklift
- Built-in spill containment
- Space Saving Vertical Design (V)
- Zero-ground clearance available
- 2 Year Manufacturer’s Warranty
Capacity
- 8 drum (55 gal.)
- 2 Tote (275 gal.)
- 8,000 lbs total capacity
Materials of Construction
All steel construction includes:
- 12 gauge interior and 14 gauge exterior walls
- Integrated framing and structural members ensure toughness
- 304 stainless steel construction available
Dimensions
Interior: 59”W x 55.25”D x 98.5”H
Exterior: 66”W x 62”D x 116.75”H
Insulation
3" thick, 6# density mineral wool
Heating Medium
Steam, hot oil, or hot water
Heat Exchanger
- Finned tube heating coil rated for saturated steam up to 200 psig.
- Recirculating coil available for hot oil or hot water
Temperature Range
Room temperature to 350°F
Integrated Spill Containment Pan
55 gallon capacity
Finish
- Exterior finished with acrylic enamel.
- Interior finished with heat resistant silver.
- Stainless steel available.
Weight
3,250 lbs.
Installation
Shipped completely assembled.
Set in place and hook up power supply.
Custom Engineering
Custom engineered, computer designed units are available. Contact us for more information.
