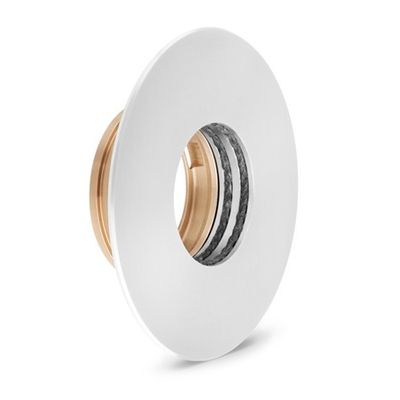

Inpro- Seal - Steam Turbine Bearing Isolator
FromInpro/Seal
Permanently protect steam turbine bearings in both high and low temperature environments. Inpro/Seal Steam Turbine Bearing Isolators utilize multiple features to ensure effective and permanent bearing protection against contamination ingress and lubrication loss on process steam turbines. They can be custom engineered to meet the requirements of your application and operating environment.
Most popular related searches
Low Temperature – below 204°C (400°F)
The unique stator/rotor design of the XX Interface blocks steam and other contaminants from entering the bearing housing. The D Groove protects against oil loss by capturing oil on the shaft and returning it to the bearing housing.
- XX Interface – unique stator/rotor interface provides IP66 rated permanent protection against contamination ingress
- Contamination Chamber – collects contaminants trying to enter the bearing housing and expels them through the expulsion port through centrifugal force and gravity
- D Groove – captures oil on the shaft and returns it to the bearing housing
- Standard Material – Bearing Bronze and 416 Stainless Steel
- Radial Movement – 0.38 mm (0.015 in.)
- Temperature Range – up to 649°C (1,200°F)
- Speed – 10,000 sfpm
- Shaft Size – 15.88 mm (0.625 in.) to 76.20 mm (3.000 in.)
