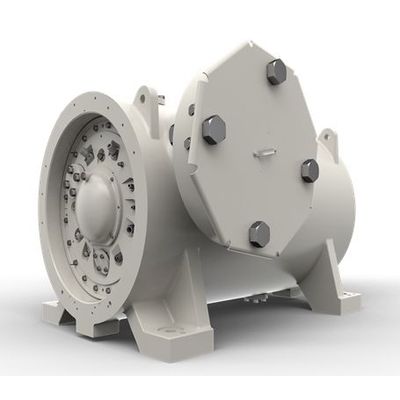

STI - Model C45 - Gas Compressor
Solar’s C45 family of gas compressors are designed for applications with the Taurus 70, Mars 90, Mars 100 and Titan 130 gas turbines. These compressors combine high efficiency and wide flow range with a robust design and ease of restaging.
Most popular related searches
C45 gas compressors have the latest state-of-the-art technology combined with the experience and reliability that comes with building and installing over 5000 compressors. These compressors are designed in compliance with API 617, a requirement for the severe environments and operating conditions this equipment may encounter.
Units: US
- Stages: 1-3
- Maximum Casing Pressure: 1600 psig
- Maximum Flow: 17,000 acfm
- Maximum Total Head: 36,000 ft-lbf/lbm
- Efficiency - %: >88% isentropic
- Maximum Speed: 12,000 rpm
- Maximum Torque: 185,000 lbr-in
Units: Metric
- Stages: 1-3
- Maximum Casing Pressure: 11,030 kPag
- Maximum Flow: 481 m3 /min
- Maximum Total Head: 108 kJ/kg
- Efficiency - %: >88% isentropic
- Maximum Speed: 12,000 rpm
- Maximum Torque: 20,900 Nm
