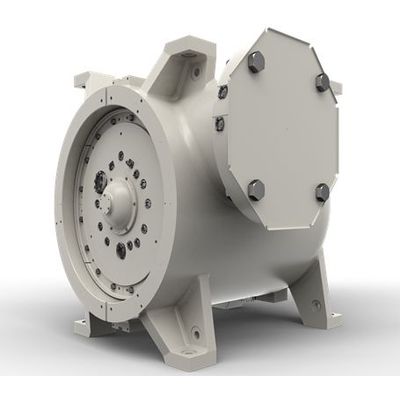

STIModel C75 - Gas Compressor

SHARE

The Solar C75 gas compressor is designed for applications with the Titan 130 and Titan 250 gas turbines. This compressor combines high efficiency and wide flow range with a robust design and ease of restaging. The C75 gas compressor has the latest state-of-the-art technology combined with the experience and reliability that comes with building and installing over 5000 compressors. This compressor is designed in compliance with API 617, a requirement for the severe environments and operating conditions this equipment may encounter.

Most popular related searches

Units: US

  • Stages: 1-3
  • Maximum Casing Pressure: 2250 psig
  • Maximum Flow: 24,000 acfm
  • Maximum Total Head: 31,000 ft-lbf/lbm
  • Efficiency - %: >90% isentropic
  • Maximum Speed: 7000-8856 rpm
  • Maximum Torque: 540,000 lbf-in
Units: Metric
  • Stages: 1-3
  • Maximum Casing Pressure: 15,510 kPag
  • Maximum Flow: 679 m3 /min
  • Maximum Total Head: 93 kJ/kg
  • Efficiency - %: >90% isentropic
  • Maximum Speed: 7000-8856 rpm
  • Maximum Torque: 61,010 Nm
