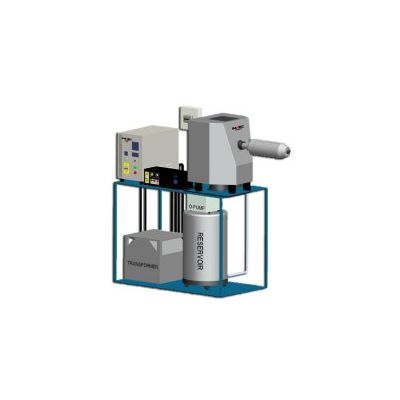

MHI - Superheated Steam Generators
Transforming Steam Technology For Significant Energy Savings. Changing the ease of use and ease of installation with SmartSteam.
Some features of the High Steam Flow OAB® and ...
Some features of the High Steam Flow OAB® and HGA Models include:
- No Pressure-Vessel Certifications Required.
- Always Stainless Steel. Unlimted capacity for continuous steam generators. Heat up within seconds. No moisture. Very High Temperature Steam
- Safety: Integrated over-temperature thermocouple for most units.
- MHI BoilerFree Technology allows for continuous steam generation unlike a boiler which has to fill up a steam chamber then discharge the steam.
- Energy efficient socket to output. Nearly 99% Outlet to Output Efficiency MHI Rating.
- Zero Combustion Processes. Zero Device NOX Emissions, No Ventilation
- Instant On-Demand Steam Generation. InstaBoiler Technology
- Patent Protected
- High quality steam or steam/gas mix available if required or pure steam. Varies by model.
- Standard output nozzles connect to standard existing piping. Use of standard BPE allowed. Delivery tubes called Vittori tubes provided.
- Compact designs are easily adaptable. Industrially required very high-flow systems are available. Exit velocity is several m/s depending on model.
- From heating to cleaning at several levels. Easy applications.
- High temperature without pressure. Adjust temperature by power and distance.
- Energy efficiency extends to a myriad of important steam applications
- Now offering 5 Bar discharge velocity on special models up to 550C
- Steam temperatures from 100°C to 1300°C. Patent Protected.
- No moisture in OAB® steam. From start-up conditions.
- Assortment of extender pipes and insulation.
- and more....like easy to install... thermal fluid heating...easy to operate..multiple streams...modern controls, industry tested... innovate Videos and Media Gallery
MHI's steam devices provide high scalability, reliability, and versatility pure steam for high and very high temperatures. Such steam can be used for chemical (labeling or food), or heating purposes or for general steam use. The OAB® generators provide steam with enhanced energy efficiency with features that encompass no pressure (one atmosphere) to high pressures. Unlike many Boilers, the Steam Generators may be re-located even after the first installation. Very small foot-prints. In several applications ranging from heating vats, making the most appealing packaging, and other common steam uses like bio-pharma, or for testing, the energy savings from OAB® pure steam offers an energy savings of up to 95% and a concomitant water savings. Each use is different, please Request Information for your specific use. Steam Energy Calculator.
High temperature equals high productivity. Use high temperature instead of high energy. This is smart power.
This Steam Applications page discusses so many examples of the benefits of high temperature steam called superheated steam.
Superheated steam carries more enthalpy, or total energy, than air at the same temperature and pressure. For example, air at 1 atmosphere and 300°C has an enthalpy difference of 575 kJ/kg when compared to air at STP. Superheated steam, at the same conditions, has an enthalpy difference of 2495 kJ/kg. Thus, superheated steam carries over five times the total energy of air when comparing for the same initial and final conditions. This gives superheated steam a much larger capability to do work or perform effectively for chemical (packaging) or food processing needs compared to other gases.
Safe high temperature steam
Unlike a traditional steam boiler system, the steam output for the MHI Superheated Steam Generator is at a safe standard atmospheric pressure (room pressure). Compare this feature to boiler systems that must induce high pressure to produce steam at temperatures, yet not significantly higher than about 100°C-144°C. This provides for a much safer high temperature steam solution. (Please note that the steam is still very hot and requires protective gear used for hot gas handling).
