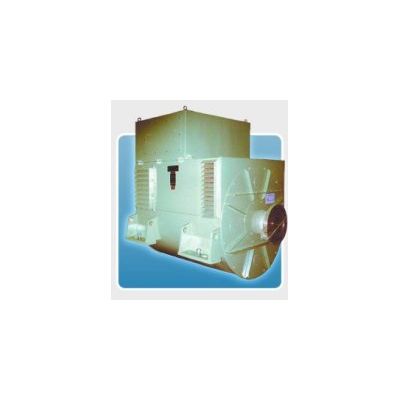

Synchronous Marine Generators

Features:

• Easy installation
• Brushless excitation
• Simple maintenance
• Customized for various diesel engines

Basic range of rated parameters:

• Output 250...2 500 kVA
• Voltage 400 V, 50 Hz; 450 V, 60 Hz (other rated voltages possible)
• Speed 600, 750, 1000, 1500 rpm (50 Hz) 720, 900, 1200, 1800 rpm (60 Hz)

Design variants:
Single-bearing (flanged shaft): IM 1305
Two-bearing (cylindrical shaft end): IM 1101

Degrees of protection and methods of cooling:

• IP 23 IC 01
• IP 44 (54) IC 81W

Voltage regulator: electronic, for installation in switchboard or mounted in generator.

Requirements of classification societies: GL, DNV, BV, PRS, LRS et al.

Application:
Generators in marine diesel generating sets, shaft generators
