Membrane Technology and Research, Inc. (MTR)
MTR VaporSep-H2 - Syngas Ratio Adjustment Using Membranes
Syngas (H2 + CO) is required to make a variety of products. Each of these syngas derivatives has a specific ratio of H2 to CO in the feed syngas that is optimal for its production. However, the H2:CO ratio produced is a function of the syngas process and the hydrocarbon feed. This ratio will not necessarily be optimal for downstream products. Therefore, some method for reducing the amount of hydrogen in the syngas is needed.
Most popular related searches
syngas
hydrogen recovery
power turbine
syngas process
hydrogen production
gas powered turbine
syngas production
syngas purification
steam power
gas powered
- Efficient syngas and hydrogen recovery: membrane systems typically recover 90% to 98% of feed CO and produce a hydrogen product at 85 to 95 vol% purity.
- Proven performance: many references for H2/CO adjustment, including pressures as high as 130 bar and operating lifetimes of more than 10 years.
- Long membrane life
- Simple, reliable, and flexible unit; easy to install and operate:
- Integrates into existing operations with minimal modification

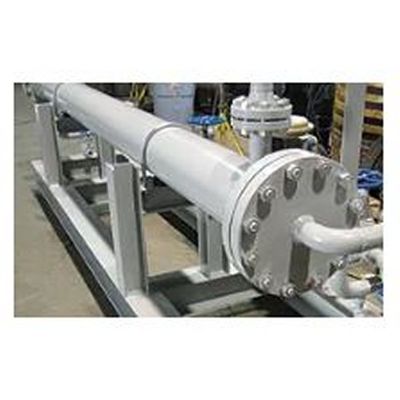

- Simple installation and operation with compact skid-mounted construction
- Requires no chemicals, contains no moving parts
- Minimal utility usage: low pressure steam, instrument air, instrument power, N2
- H2 purification
- CO purification
- Syngas ratio adjustment for the following:
- Methanol, oxo alcohols
- Gas-to-liquids (GTL), power turbine
- H2 recovery from ammonia purge gas
