KONCAR - Model TG-WFD - System for Detection of Excitation Winding Shorted Turns in Hydro Generator
The TG-WFD system performs analysis of magnetic field in machines air gap. Based on a patent-pending solution for differential measurement of magnetic field, the system can provide to users information on potential shorted turns in real-time. TG-WFD system allows better asset management and reliable monitoring of the machine.
Most popular related searches
portable energy monitoring
energy monitor
energy monitoring
portable energy diagnostic instrument
hydro generator
energy monitoring system

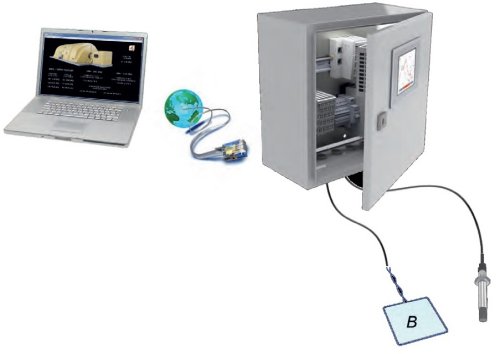

- Architecture: High speed data acquisition unit with the real time controller and local visualization
- Inputs and outputs: Voltage inputs (for magnetic flux and key phasor measurement) Ethernet interface
- Data visualization: Local client application and web browser
- Data logging: Database for long-term events and data logging
- Supported protocols: Modbus, EtherCAT
- Power supply: 100 V AC - 240 V AC, 24 V DC
- Design: Case for a portable version, painted steel ( IP54) for permanent installations
- Operating temperature: 0 to +65°C
- Standards compliance:
- EMC immunity/emission (EN 61000-6-2/EN 61000-6-4)
- Vibration/shock resistance (EN 60068-2-6/EN 60068-2-27/29)
Services
- System installation and commissioning
- Staff training
- Expert interpretation of the acquired monitoring results
- Operates with classical fault detection theory and with new patent-pending solution for winding shorted turns fault detection
- Long-term data preview for all excitation winding coils
- Local and remote data access
- Upgradeable system for various monitoring parameters
