KONCAR - Model HG-WFD -System for Detection of Excitation Winding Shorted Turns in Hydro Generator
The HG-WFD system performs analysis of magnetic field in machine air gap of turbo generator. Based on patent-pending solution for differential measurement of magnetic field, the system can provide to users information on potential shorted turns in real-time. HG-WFD system allows a better asset management and reliable monitoring of the machine.
Most popular related searches
portable energy monitoring
energy monitor
energy monitoring
portable energy diagnostic instrument
hydro generator
energy monitoring system
data logging application
- On-line analysis
- Winding fault detection
- Fault location enabled with key phasor
- Data storage
- Better asset management
- Reduces potential damage costs
- Operates with classical fault detection theory and with new patentpending solution for winding shorted turns fault detection
- Long-term data preview for all excitation winding coils
- Local and remote data access
- Upgradeable system for various monitoring parameters
- Architecture: High speed data acquisition unit with the real time controller and local visualization
- Inputs and outputs: Voltage inputs (for magnetic flux and key phasor measurement) Ethernet interface

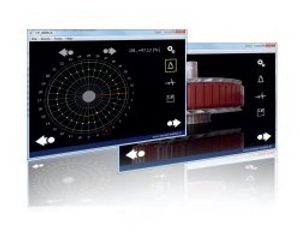

- Data visualization: Local client and remote application
- Data logging: Database for long-term events and data logging
- Supported protocols: Modbus, EtherCAT
- Power supply: 100 V AC - 240 V AC, 24 V DC
- Design: Case for a portable version, painted steel (IP54) for permanent installations
- Operating temperature: 0 to+65°C
- Standards compliance:
- EMC immunity/emission (EN 61000-6-2/EN 61000-6-4)
- Vibration/shock resistance (EN 60068-2-6/EN 60068-2-27/29)
Services
- System installation and commissioning
- Staff training
- Expert interpretation of the acquired data
