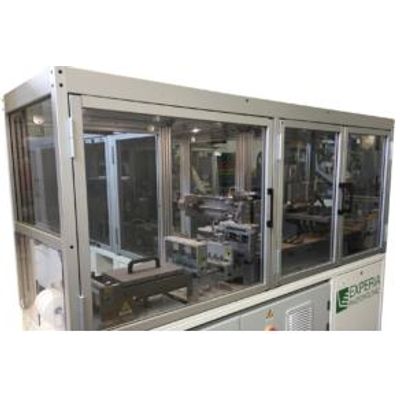

Experia - Model M1 - Tabber Stringer Machine
EXPERIA M1 is the new fully automatic tabbing/stringing machine that solders 1200 photovoltaic cells/h in order to produce more than 30MW/year of standard crystalline PV panels. The “year 2017” project aim to make a reliable automatic system easy to setup and control that produces continuously PV strings made with 4 & 5 busbars cells with high accuracy and a low breakage rate thanks to the innovative “soft touch” Millepiedi soldering system.
Most popular related searches
tabber stringer machine
photovoltaic string
photovoltaic panel
stringer machine
photovoltaic cell
custom solar
photovoltaic
photovoltaic system
- 1200 cells/h
- 5 busbars
- 3 & 4 busbars as optional
- cut cells: 40 x 156mm, 52 x 156mm, 78 x 156mm, 104 x 156mm kits
- 2 baskets for cells loading (200c) with auto switch
- automatic flux dispenser
- drying system for fluxed ribbon
- stretching system for ribbon
- stress relief bend for ribbon – Z shape
- ribbon spools up to 25kg as optional
- visual alignment and centering system of cells with High Resolution Camera (optional)
- visual quality control system with additional High Resolution Camera (optional)
- innovative “soft touch” Millepiedi Technology soldering system with breakage rate < 0,3%
- Unloading belt with length up to 2m (12 cells – 6″)
- Flip system for PV strings
- Touch panel with embedded PC for remote assistance
- PLC Omron (Japan) – pneumatic SMC (Japan)
