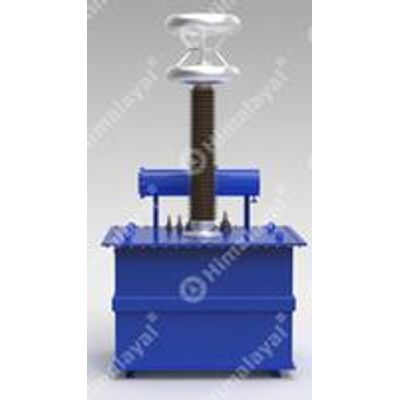

Himalayal - Model HTTS10KV/200KVA - Tank Type Test Transformer
Over Current Ability: Continuous working for 3 minutes under 120% rated current, then thermal damage or distortion of the winding shall not be occurred.
Most popular related searches
- Tank type Single phase
- Rated Capacity: 200kVA
- Rated Voltage: Input voltage: 0.6kV: Output voltage: lOkV
- Frequency:50Hz
- Rated Current Input current: 333.3A
- Output Current:20A
- {HV terminal of the transformer will be earthed through a current transformer 5/5 so as to check the current value of HV side and ensure safety of the
- operators and equipment)
- Waveform deviation
- Unload Current: 10<10%
- Impedance voltage
- Voltage Ratio of Measurement Winding:1000:l
Over Voltage Ability: Over voltage at 110% UH (llkV) for 60s., then it shall not happened any insulation damage for the testing transformer.
Insulation Level:18kV/lmin(low voltage terminal to earth)
- Transformer Oil:25# China made
- Noise=
- Dielectric loss: less than 0.5%.
- PD Level:
- One hour on and one hour off at 100% rated currents voltage:
- Continuous working allowed at 80% rated current & voltage: and temperature rise of transformer winding is less than 65K. temperature rise of oil
- surface is less than 55K.
