Termen - Model SCWA -Domestic Hot Water Temperature Stabilizers

SHARE

Designed for heat distribution units with domestic hot water heat exchangers with temperature limiting automatics (e.g. direct-acting temperature controllers). The temperature stabilizers can also be used as chilled water or glycol solution temperature stabilizers.

Most popular related searches
domestic hot water
domestic water heating
heat exchanger
heat exchanger water
  • maintain domestic hot water temperature at ±1oC set temperature
  • stabilize domestic hot water temperature by mixing water at various and changing temperature

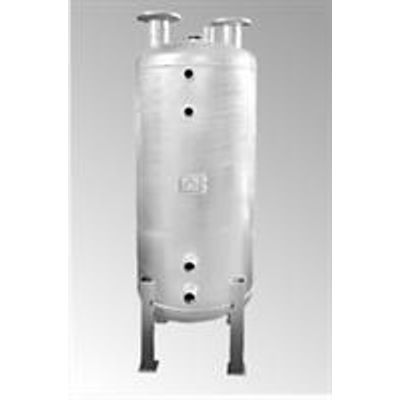

Domestic hot water temperature stabilizer is designed as a hot-galvanized cylindrical steel tank. The top section includes an inlet (1) and outlet (2) port with custom end connections. The bottom section is fitted with a vent port (3) and thermometer port (4). The top section includes a pair of ports (5) for temperature controller sensor and thermomanometer. The bottom section includes a pair of ports (6) for connecting circulation pump. Tank chamber is cleaned via a drain port (7).
