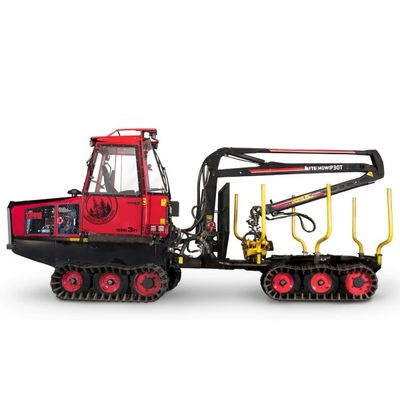

When it comes to forwarding on sensitive and/or in inaccessible terrain, it is time to bring in a tough one from the Swedish region of Småland: Terri 3FT. A machine that, thanks to low ground pressure, performs a perfect job even when the terrain looks rough and difficult.
Despite its small width of 1.90 metres, the forwarder has a loading area of two square meters. The agility of the machine, both in terms of loading and work, is further enhanced thanks to the fact that the wheelbase is variable, and the rear bank is slidable. You also have the possibility to choose between different cranes to adapt the work to your specific needs.
We place great emphasis on an optimal work environment in all of our machines. In many ways our cabins are top of the class and can be compared with large forestry machines: airy, spacious and equipped with technology and amenities that make the working days both enjoyable and smooth. Everything has been sketched and studied down to the smallest detail and adapted for long shifts.
Engine
- Diesel engine:CAT 3.6
- Power:55,4 kW
- Number of cylinders:4
- Torque:424 Nm/1 200 rpm
- Diesel tank volume:100 l
Crane
- Crane:Mowi
- Model:P30 / P30T / P40
- Lifting torque:31 KNm / 37 kNm
- Slewing torque:8.5 kNm / 12 kNm
- Slewing arc:360º
- Reach:5.7 / 6.7 / 6.2 m
Transmission
- Transmission:Fully hydraulic
- Max. steering angle:45º
- Gears:1, 2 & reverse
- Max. speed:11 km/h
- Track width:490 mm
Chassis
- Service weight:5800 kg
- Length, standard:6600 - 7200 mm
- Length, extra long:7200 - 7800 mm
- Width:1900 mm
- Highest height:2900 mm
- Ground clearance:400 mm
- Loading area:2.00 m2
- Loading capacity:max. 5 tons
Hydralic system
- Hydraulic system:Danfoss
- Tank volume:120 l
- Pump capacity:115 cc
Electrical system
- Electrical system:24 V
- Battery:2x12 V / 100 Ah
- Generator:100 A
