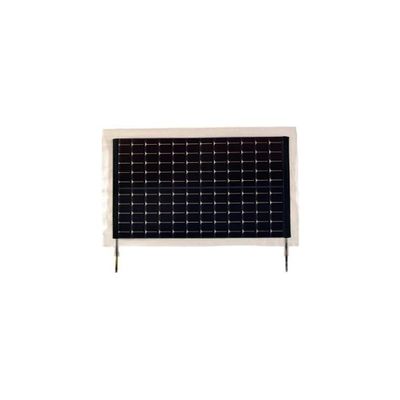

PowerFilmModel PT15-150 -Thin-Film Amorphous Silicon Flexible Solar Module

SHARE

This ruggedized thin-film amorphous silicon flexible solar module is laminated with high-performance ETFE, and tinned copper ribbon leads. It’s well suited to collect direct and indirect sunlight in shady areas and offers robust protection against UV, moisture, and weather with an IP68 laminate edge seal and 20-year UV-rated materials.

Most popular related searches

Electrical Specifications:

Full Sun

  • Power: 1.54W
  • Operating Voltage: 15.4V
  • Current: 100mA

1/4 Sun

  • Power: 347mW
  • Operating Voltage: 15.4V
  • Current: 22.5mA

All Levels

  • Average Voc: 19.0V
  • Maximum Voc: 22.2V
  • Isc: 128mA

Physical Specifications:

  • Dimensions: 283.0 x 172.0 (mm) / 11.14 x 6.77 (in)
  • Weight: 1.09oz / 31.13g
  • Thickness: 0.57mm
