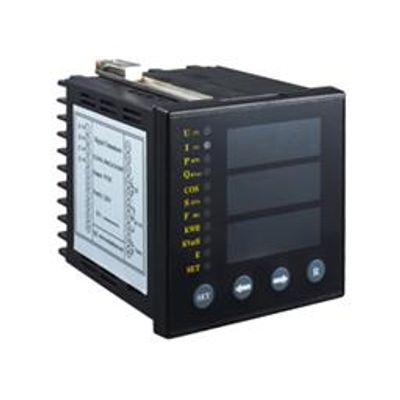

SSET - Three Phase AC Multi-parameter Digital Transducer
CE-D series is a 3 phase AC intelligent transducer with the programmable power, intelligent measurement, digital tube display, power accumulation, transmission output, switch output, RS485 output, measurement of four quadrant power and other function. It is with the advantage of high precision, strong electromagnetic compatibility.
Most popular related searches
multi-transducer
digital transducer
lightning surge
electromagnetic compatibility
power factor
power monitoring
power transmission
- Accuracy: voltage/current: 0.2class; power, power factor, frequency: 0.5class;
- Maximum display: 9999;
- Distinguishability: voltage: 0.1V, current: 0.001A;
- Input: AC 500V*5A;
- Analog output (optional): voltage: 0-5V,1-5V; current: 0-20mA,4-20mA;
- Load capacity: voltage≥2KΩ; current＜300Ω ;
- Communication interface: RS485(Baud rate: 9600bps, data format: start bit 1 bit, data bit 8 bits, stop bit 1 bit, Check digit can be set) ;
- Switching value output: Relay output, contact capacity AC 250V/5A;
- Power supply: AC/DC 85~265V
- Power consumption: ≤3.5VA;
- Isolation voltage: power/input /output≥DC2.5KV/min.1mA
- Surge impact immunity: 2500V;
- Anti-lightning surge: 2000 V;
- Isolation resistance: ≥100MΩ;
- Operating temperature: -10℃~+60℃;
- Storage temperature: -40℃~+70℃.
