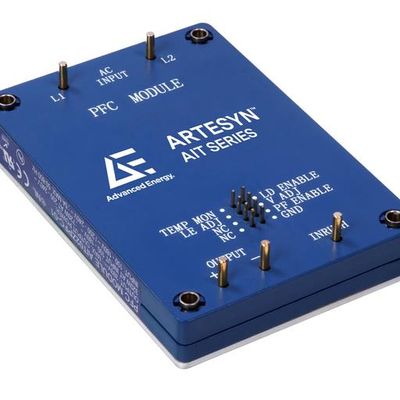

Advanced Energy - Model Artesyn - AIT02ZPFC Series -Three Quarter Brick Power Factor Correction (PFC) Modules
The AIT02ZPFC series three-quarter-brick power factor correction module accepts a wide 85 to 264 VAC input and presents a unity power factor. It accommodates AC supply frequencies of 50 Hz, 60 Hz or 360 to 800 Hz. Rated at 720 W, the module offers a conversion efficiency of up to 93% and provides a typical output voltage of 393 VDC.
Based on an encapsulated design that incorporates a thermal baseplate, the AIT02ZPFC series PFC module accommodates a baseplate operating temperature range of -20 to 100°C and can start up from temperatures as low as -40°C. The module has an industry-standard 2.4 x 3.5 inch (61 x 88.9 mm) footprint and an installed height of only 0.54 inch (13.9 mm).
<!--td {border: 1px solid #cccccc;}br {mso-data-placement:same-cell;}--> Advanced Energy`s AIT02ZPFC series PFC modules comply with the RTCA-DO-160 avionics standard and the IEC1000-3-2 harmonics emission standard.
- 100°C baseplate operating temperature
- High efficiency up to 93%
- IEC100032 compliance at 50Hz and 800Hz input
- TRCADO160D harmonic compliant at 115Vac input full load
- Up to 720 W output power
- Enable output to control DCDC Converter
- Internal active switch bypassing external inrush current
- Negative enable function
- Unity power factor
- Universal input voltage and frequency range
- Output Power (W): 720
- Length (Inches): 3.5
- Width (Inches): 2.4
- Height (Inches): 0.55
- Mounting Type: BMP; Through Hole
- Minimum Output Current (A): 0
- Maximum Output Current (A): 2.08
- Output Voltage Range (V): 393V to 393V
- Minimum Output Power (W): 720
- Maximum Output Power (W): 720
- Minimum Input Voltage (V): 85
- Maximum Input Voltage (V): 264
- Warranty (Years): 1
