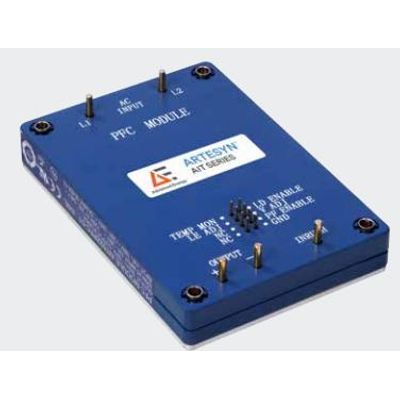

Advanced Energy - Model Artesyn - AIT00ZPFC Series - Three Quarter Brick Power Factor Correction (PFC) Modules
The AIT00ZPFC series of three-quarter-brick power factor correction modules accept a 100 to 122 VAC input and present a unity power factor. They accommodate AC supply frequencies of 50 Hz, 60 Hz or 360 to 800 Hz, and a DC input version is also available. Rated at 150 W, the modules have a high conversion efficiency of 91% and provide a typical output voltage of 393 VDC.
Based on an encapsulated design that incorporates a thermal baseplate, the AIT00ZPFC series PFC module accommodates a baseplate operating temperature range of -20 to 100°C and can start up from temperatures as low as -40°C. The module has an industry-standard 2.4 x 3.5 inch (61 x 88.9 mm) footprint and an installed height of only 0.54 inch (13.9 mm).
Advanced Energy’s AIT00ZPFC series PFC modules comply with the RTCA-DO-160 avionics standard and the IEC1000-3-2 harmonics emission standard.
- Unity power factor
- High efficiency - up to 92%
- Civil / Aviation supply frequency range (50 / 60 / 360 to 800 Hz)
- Up to 150 W output power
- Negative enable function
- DC Input option
- Enable output to control DC-DC Converter
- Internal active switch bypassing external inrush current components
- RTCA-DO 160 compliant
- IEC1000-3-2 compliance at 50 Hz to 800 Hz input
- 100°C baseplate operating temperature
- Output Power (W): 150
- Length (Inches): 3.5
- Width (Inches): 2.4
- Height (Inches): 0.55
- Mounting Type: BMP; Through Hole
- Minimum Output Current (A): 0.34
- Maximum Output Current (A): 0.34
- Output Voltage Range (V): 393V to 393V
- Minimum Output Power (W): 150
- Maximum Output Power (W): 150
- Minimum Input Voltage (V): 100
- Maximum Input Voltage (V): 122
- Warranty (Years): 1
