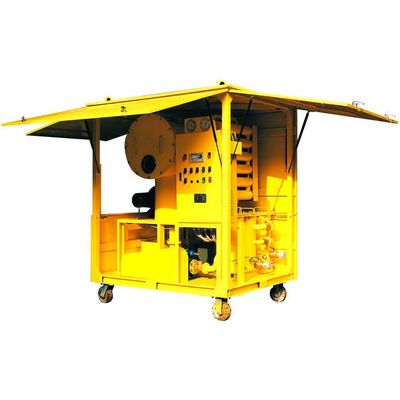

Fengyu - Model DZL -Transformer and Freezer Oil Purifier
The main function of DZL Series single & double stage high-efficient vacuum oil purifier is to remove dissolved water, gas and mechanical impurities from insulating oil so as to ensure its purity and improve its insulation property. It is suitable for the application to oil treatment 500KV super-voltage transforming equipment and 220KV transformer. It is also suitable for the treatment of capacitor oil, transformer oil and freezer oil.
Most popular related searches
transformer oil
oil level controller
vacuum oil purifier
high vacuum oil purifier
transformer equipment
oil transport
transformer oil purifier
transformer oil cleaning
TECHNIQUE FEATURE
- Double evaporation area by adopting Fengyu horizontal double vacuum separation technology efficiently and reliably.
- Thorough removal of gas in the oil by using coalescing oil fog separator.
- Adopt American fine filter element, fineness: 5μm, ß≥1000
- Low noise and long life of the oil transport system
- Adopt American heating technique with the way of thermal radiation, constant temperature control.
- Using float valve and photoelectric oil level control, no need of human supervision
- Adopt French vacuum defoaming technique to avoid oil leaking
- Controlled digitally and automatically by PLC
- Major electric apparatus are imported fromAmerica, the controlling system is safe and reliable
