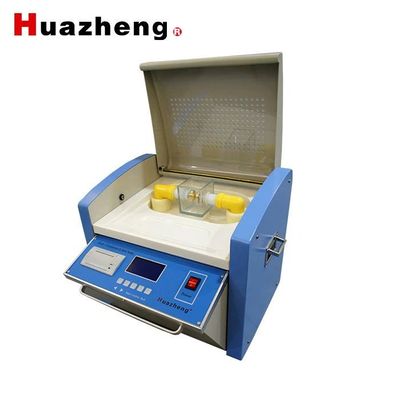

Huazheng - Model HZJQ-1 -Transformer Oil BDV Test Kit 80kV 100kV
HZJQ-1 Transformer Oil BDV Test Kit 80kv 100kv 1. Simple operation. The machine will automatically complete the withstand voltage test on one cup of sample oil after simple setting by the operator. Breakdown voltage value of 1 to 6 times and recurrent times will be automatically saved.
Transformer Oil BDV Test Kit is a scientific and technical staff of our company. According to the relevant provisions of national standard GB507-1986 and industrial standard DL/T846.7-2004 As well as ASTM D1816 and ASTM D877, Transformer Oil BDV Test Kit has been carefully researching and developing high-precision and all-digital industrial equipment through a large number of field tests and long-term unremitting efforts by exerting its advantages.In order to meet the needs of different users, this series of instruments can be divided into single cup, three cup, cup type, etc.The instrument is simple in structure and elegant in shape.Due to the use of automatic digital computer control, so high measuring accuracy, strong anti-interference ability, safe and reliable.
Major Factor
- Output voltage: 0~80KV (100KV optional)
- Voltage distortion rate: <3%
- Voltage raising speed: 0.5~5 KV/S (adjustable)
- Standing time: 15min (adjustable)
- Boosting interval: 5 min (adjustable)
- Boosting frequency: 1~9 time(s) (optional)
- Booster capacity: 1.5KVA
- Measuring accuracy: ±3%
Precautions
- The selection, placing and electrode distance of the oil sample before testing shall meet relevant national and industrial standards.
- The operators or other personnel are strictly forbidden to touch the casing after the power is switched on to avoid accidents.
- The power shall be cut off immediately if any abnormal event is found during the operation.
Maintenance
- This equipment shall not be exposed in moist environment.
- Keep the oil cup and the electrodes clean. Fill the cup with fresh transformer oil for protection during its idle. Check the electrode distance and check the tightness between the electrode tip and electrode bar screw thread before the cup is used again.
