Transformer Oil PCB Processing Equipment, Insulating Oil Regenerator
As transformer oil ages, it oxidizes and begins to break down. During this time, oil purification which effectively removes moisture, solids and gaseous contamination will not be able to remove other by-products from the aging transformer oil. The by-products of the degradation process include PCB,acids, aldehydes, and peroxides, which bind together to form sludge. Sludge attacks the cellulose insulation, inhibits oil flow and traps heat inside the transformer. Eventually the dielectric gap will be bridged, thus, resulting in failure of the transformer.

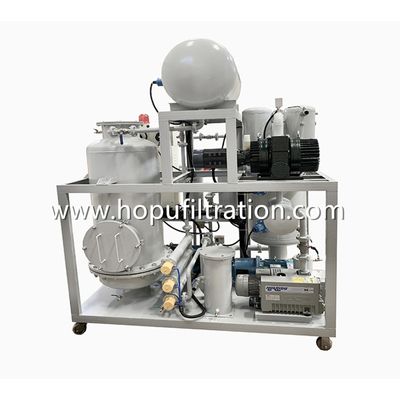

HOPU ZYD-I Series Transformer Oil Processing Equipment restores transformer oil by removing PCB,acidity, sludge, soluble oil decay products and improves oil colour with Fullers earth or Active Silicon treatment technology. When the treatment is complete, the regenerated oil meets or exceeds international standards for new oil with lower acidity and improved tan delta, interfacial tension, and oxidation stability. The cellulose insulation and internal components of the transformer also benefit from the flushing effect of multiple passes of hot regenerated oil, which helps remove decay products and sludge from internal surfaces.
1. Extends the transformer life by restoring the qualities of the transformer oil to be similar to new oil condition
2.Oil Regeneration is much less costly than changing new oil
3.Minimal downtime as a result no revenue loss as Oil Regeneration can be performed ‘on-inline or live’/ energized transformer
4. Environmentally friendly as the existing oil is reused. There will also be no hazard from oil spills and PCB contamination, including the trouble with the disposal of old oil
5.Oil Regeneration removes the sludge build up and deposited on the internal core and coils of the transformer, which a traditional oil change will not
6. Oil Regeneration can be continuously performed in most weather conditions and will not run the risk of exposing the internal transformer core to adverse weather conditions during an oil change
