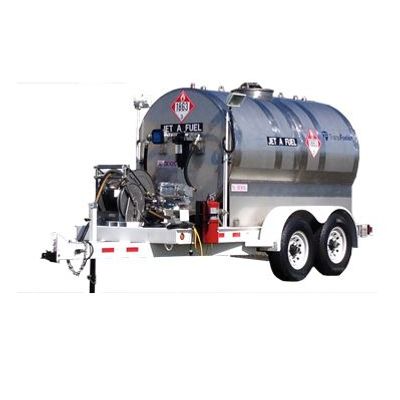

TransFueler - Aviation Fuel Tank Trailer

FromTransfueler Inc.

SHARE

In use with most major aircraft manufacturers and a wide range of operators; Fixed Wing, Unmanned (UAV) & Helicopter.

Most popular related searches

diesel fuel management system

solar panel system

aviation fuel tank

grounding cable

Tank Capacities Available: 110 - 2500 Gallons
Tanks are Fully Baffled, Stainless Steel or Aluminum.
DOT 406 or UN31Y Tanks are Also Available.
All Piping, Fittings Hoses & Hardware are Aviation Fuel Rated & Compatible.
Fuel Sump Drain Valve for Daily Water Check
Fuel Level Gauge
Ball Valve to Isolate Tank

GPI M-3025-AV-PO 12V High-Output 25 Gallon Per Minute Pump
12V Battery
115V 7.2A Automatic Charger Battery Box
50’ Certified Aviation Hose, Meets API Bulletin 1529, NFPA 407
Hannay Stainless Steel Spring Rewind Hose Reel, Aviation Approved Internals
Velcon or Facet Aviation Fuel Filter w/Filter Mount
Mechanical Totilizing Meter
10” Betts Fill Port w/ Integral 2” Normal and Emergency Vent
50’ Static Grounding Cable on Reel
OPW or EBW Aviation Overwing Nozzle w/ Dust Cap w/6.5’ Grounding cable.

Super-Duty Steel Chassis
Steel Fenders & Diamond-Plate Decking
Tandem Axle
Electric Brakes with Safety Breakaway System
LED DOT Lighting, with Steel Guards
Adjustable Ball Hitch W/Safety Chains
Heavy-Duty Jack

TransFueler has a wide variety of options. We can equip your TransFueler to precisely match your needs:

Hose Length Options Up To 150` of UL Hose on Reel
Double-Wall Stainless Steel or Aluminum Tank
DOT 406 Tank
UN31Y/A Tank
Single Point Fueling Nozzle
Pump Options: 12V, 115VAC, Ultra-High Output, Diesel Powered or Gas Powered Pumps
Certifiable Meter; For Resale of Fuel, TCS or Liquid Controls
Piusi Fuel Management System; To Control and Track Fuel Dispensing
Refuel / Defuel System. Great option that allows the pump to pull fuel out of a tank as well as dispense it. A TransFueler EXCLUSIVE
Vapor Recovery System, Stage I
Fire Extinguisher(s), Mounted
Bottom Fill Kit w/2" Dry Disconnect, 2" Ball Valve & Sump Drain
Spare Tire Assembly w/Mount
Tool Box: 48" or 58"
Locking Steel Enclosure Cabinet; Secures Dispensing Equipment
Work Lights; LED or Halogen
Solar Panel System: 60 Watt, Includes Controller
Air Compressor
