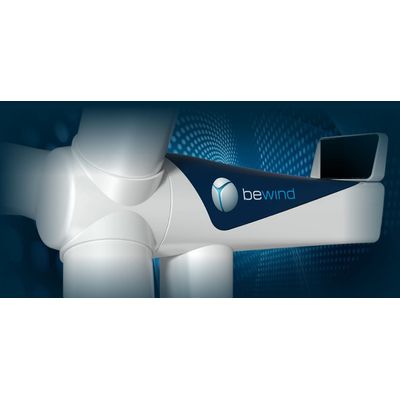

bewind - Model BW 6.xM172 - Turbine for Onshore Projects
The BW 6.xM172 turbine is engineered for onshore wind energy projects, designed to optimize performance at low to medium wind speed sites. This turbine features advanced control technologies and blades optimized for both yield and load efficiency, ensuring a competitive levelized cost of energy (LCoE). The innovative blade design is complemented by state-of-the-art control strategies, allowing flexibility for various market and supplier approaches. These features collectively enhance the turbine's effectiveness in diverse operational conditions, addressing specific technical challenges and project scopes. The turbine aligns with DIN ISO 9001 standards, reaffirming its quality and reliability. Further technical insights and discussions regarding its implementation can be facilitated through direct contact with BE Wind.
Our solution for your onshore projects. This turbine incorporates latest control features together with yield and loads optimized blades - in order to provide a best-in-class LCoE for your low and medium wind speed sites. Highly efficient blade designs, supported by leading-edge control strategies, create your competitive advantage, open for different market and supplier strategies.
Turbine :
- IEC class : IEC III S
- Rated power : 6,xxx kW
- Cut-in wind speed : 3.0 m/s
- Nominal wind speed : 10.0 m/s
- Cut-out wind speed : 22.0 m/s (26.0 m/s with derating)
- Ambient temp operation : -20 ˚C to +45 ˚C
- Ambient temp structure : -40 ˚C to +50 ˚C
- Design lifetime : 25 years
- Standard air density : 1.225 kg/m³
- Sound power level : 104.9 dB(A)
Rotor :
- Blade length : 84.25 m
- Swept area : 23,235 m²
- Material : Carbon-fiber reinforced plastic (CFRP)
Drivetrain :
- Gearbox type : 2-stage gearbox, planetary gear system
- Generator type : PMSG
- Converter Type : Full converter
