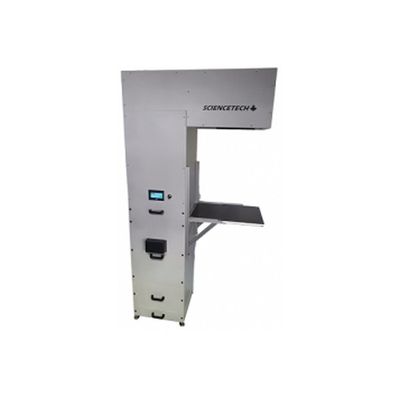

Sciencetech - Model 166-9028 - (UHE-NL-150) Class A Solar Simulator Work Station 150x150mm Target Size

SHARE

Class: AAA. Target Size: 150mm x 150 mm. Working Distance: 500mm. 500W Lamp Included. Integrated touch screen control unit. RS232 interface and software for remote operation included. Includes air mass filter AM1.5G (160-8023) and computer-controlled shutter.

Most popular related searches
solar simulation and PV testing system
solar simulation
steady state solar simulator
steady-state solar simulator
photovoltaic testing system
photovoltaic testing
solar photovoltaic testing
photovoltaic system
solar testing system
solar simulation equipment
    • Name : (UHE-NL-150) Class A Solar Simulator Work Station 150x150mm Target Size
    • SKU : 166-9028
    • Target Size : 150x150mm
    • Typical Power Output : 1 Sun
    • Uniformity Classification : Class A
    • Power Requirements : 110-115V/60Hz 10A or 220-240V/50Hz 6A
    • Collimation Angle : 8 degrees half angle
    • Lamp Power : 500W
    • Working Distance : 500mm
    • Spectral Match Classification : Class A
    • Temporal Instability Classification : Class A+
    • Classification : Triple A (AAA)
    • Continuous or Flash : Continuous,
