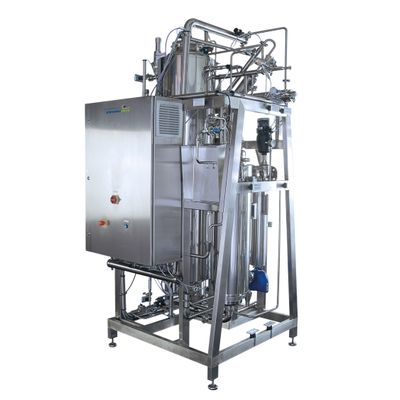

EnviroFALK - Ultrapure Steam Generators

Generating pure stream in accordance with EN 285
The thermal degassing of feed water removes all non-condensing gasses in accordance with EN 285. The steam is produced by an external heat exchanger. The slow rate at which the steam rises within the pressure column ensures optimal droplet separation.

Just as with the generation of WFI, the heat exchangers, which are operated by process steam and cooling water in a secondary loop with impure media, are designed as shell-and-tube heat exchangers with a double base. This almost completely rules out any risk of pure and impure media mixing.

INTELLIGENT STAND-BY SYSTEM

Our pure steam generators also allow you to benefit from an intelligent stand-by system: for minimum waiting times during standard operation. This will
provide you with the pure steam you need, with attention to the technical details offering clear advantages during operation.

• Anti-rouging concept
• Blowdown < 1%
• Full insulation
• Natural circulation process: no burning-in of impurities
