Romind - Universal Polyphase Short-Circuiting Device

Aerial Bundle Cables (ABC) provided with DPS (ROMANIA) voltage connectors: use the short-circuiting subassembly, in whose plugs are mounted the coupling adaptors to DPS connectors (from the kit), the earthing subassembly and the mobile earthing rod.

Overhead lines with bare conductors: use the clamps with screw locking and insulating stick coupled to the plugs of the short-circuiting device, the earthing subassembly and the mobile earthing rod.

Components:
Short-circuiting subassembly provided with:
-Coupling plug for voltage connectors type COT 10-95 A – “n” = 4…7 pieces
-Short-circuiting cable – 3…6 pieces
-Connection cable to the earthing subassembly provided with socket plug – 1 piece

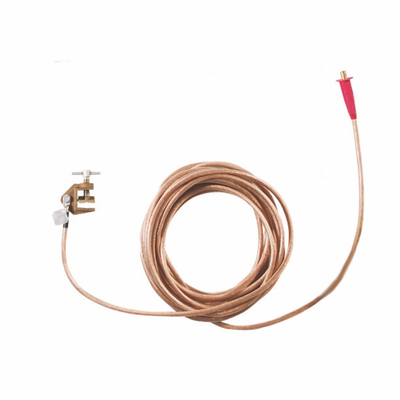

Earthing subassembly provided with:
-Coupling plug for the connection to the short-circuiting subassembly – 1 piece
-Earthing cable – 1 piece
-Earthing clamp – 1 piece

Set of phase clamps clamps with screw locking and insulating stick for bare LV overhead lines -”n” = 4…7 pieces

Set of coupling adaptors to DPS connectors* (see NOTE) -”n” = 4…7 pieces

Insulating extension stick – 1 piece

Mobile earthing rod – 1 piece

Packing: waterproof bag

Components: the short-circuiting subassembly is provided with:

• Coupling plug for voltage connectors type COT 10-95 A – “n” = 4…7 pieces
• Short-circuiting cable – 3…6 pieces
• Connection cable to the earthing subassembly provided with socket – 1 piece

The earthing subassembly is provided with:

• Plug for the connection to the short-circuiting subassembly – 1 piece
• Earthing cable – 1 piece
• Manual earthing clamp – 1 piece
• Set of self-tightening clamps with insulating stick for bare LV overhead lines -”n” = 4…7 pieces
• Set of coupling adaptors to DPS* (see NOTE) -”n” = 4…7 pieces
• Insulating extension stick – 1 piece
• Mobile earthing electrode – 1 piece

* NOTE: nominal short-circuit current for t=1 s – max. 6 kA
