Adaptronic - Model KT 630 -Universal Wiring Tester System

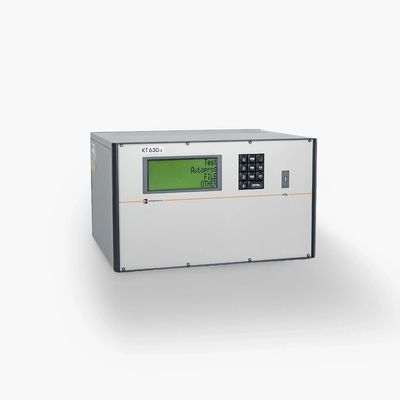

The universal KT 630 wiring tester with up to 1024 test points improves your quality assurance through precise low-voltage and high-voltage tests. The KT 630 wiring tester offers insulation tests up to 1500 VDC, dielectric strength tests up to 1060 VAC/1500 VDC, and high-current tests up to 2 ADC. It also performs precise connection, short-circuit, and component tests, as well as accurate testing of resistors and capacitors.The KT 630 is ideally equipped for all test requirements with functions such as pin length measurement, optional voltage measurement, and an LCR measuring bridge. The intuitive NT Control LT software makes it easy to create and manage testing programs.Whether as a stand-alone unit or integrated into production lines: the ability to automatically learn what constitutes a good sample and 2 GB of memory for comprehensive result logging save valuable time and increase efficiency.
KT 630
Metric
- High voltage test (AC) max.: 1060 V
- Test current (AC) min.: 6 mA
- Test of other components: Diodes, LEDs, Zener diodes, varistors, surge arresters
- Interfaces: Network, 2 x USB, pin number probe, connection option for red-green warning lamp, foot switch, test result indicator
- Dimensions/height: 275 mm
- Width: 450 mm
- Dimensions/depth: 395 mm
- Weight: ca. 19 kg
- Voltage (AC), input max.: 230 V
- Frequency, input min.: 50 Hz
- Frequency, input max.: 50 Hz
- Voltage, input, connector: Protective contact plug (240 V, 16 A, 3-pole)
- Ambient temperature, operation min.: 10 °C
- Ambient temperature, operation max.: 40 °C
- Ambient temperature, storage min.: 10 °C
- Ambient temperature, storage max.: 60 °C
- Air humidity non-condensing min.: 30 %
- Air humidity non-condensing max.: 70 %
- Test voltage (AC) max.: 1060 V
- Test voltage (DC) max.: 1500 W
- Test current (DC) max.: 2 A
- Test points, total max.: 1024
- Continuity test via threshold identification min.: 0.001 Ω
- Continuity test via threshold identification max.: 10000000 kΩ
- Short-circuit test via threshold identification min.: 20 kΩ
- Short-circuit test via threshold identification max.: 100 MΩ
- Resistance measurement min.: 1 Ω
- Resistance measurement max.: 5 MΩ
- Capacitance measurement min.: 10 nF
- Capacitance measurement max.: 0.02 F
- High voltage test (DC) max.: 1500 V
- DIO voltage max.: 24 V
Imperial
- High voltage test (AC) max.: 1060 V
- Test current (AC) min.: 6 mA
- Test of other components: Diodes, LEDs, Zener diodes, varistors, surge arresters
- Interfaces: Network, 2 x USB, pin number probe, connection option for red-green warning lamp, foot switch, test result indicator
- Weight: ca. 41.9 lb
- Voltage (AC), input max.: 230 V
- Frequency, input min.: 50 Hz
- Frequency, input max.: 50 Hz
- Voltage, input, connector: Protective contact plug (240 V, 16 A, 3-pole)
- Ambient temperature, operation min.: 50 °F
- Ambient temperature, operation max.: 104 °F
- Ambient temperature, storage min.: 50 °F
- Ambient temperature, storage max.: 140 °F
- Air humidity non-condensing min.: 30 %
- Air humidity non-condensing max.: 70 %
- Test voltage (AC) max.: 1060 V
- Test voltage (DC) max.: 1500 W
- Test current (DC) max.: 2 A
- Test points, total max.: 1024
- Continuity test via threshold identification min.: 0.001 Ω
- Continuity test via threshold identification max.: 10000000 kΩ
- Short-circuit test via threshold identification min.: 20 kΩ
- Short-circuit test via threshold identification max.: 100 MΩ
- Resistance measurement min.: 1 Ω
- Resistance measurement max.: 5 MΩ
- Capacitance measurement min.: 10 nF
- Capacitance measurement max.: 0.02 F
- High voltage test (DC) max.: 1500 V
- DIO voltage max.: 24 V
