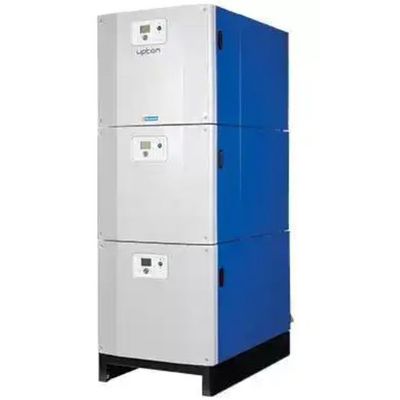

Hamworthy - Upton Floor Standing Modular Boiler
Space saving, fully modulating condensing pre-mix floor standing boiler with aluminium heat exchanger. Available in 6 modules with outputs (@50/30°C) of 98, 147, 197, 246, 295 and 348kW. Individual boiler modules can be stacked one, two or three high in up to 18 combinations, maximum 1,046kW.
Most popular related searches
floor standing boiler
aluminum heat exchanger
boiler controller
boiler control
heat exchanger
combustion plant regulations
medium combustion plant
boiler pump
combustion plant
clean combustion
- Small footprint – get over 1MW from less than 1 metre squared footprint
- Aluminium heat exchanger provides excellent heat transfer properties and a 5-year warranty
- Quick to respond with low water content
- Lightweight and compact modular boiler – ideal for city centre developments
- Parallel water flow for an even surface temperature across the aluminium heat exchanger
- Highly efficient up to 97% gross seasonal efficiency exceeds legislation and reduces energy use
- High turndown ratio for close load matching further improves efficiencies
- Assists designers with changing project requirements - gas and water connection positions identical on all models
- Easy access for service and system cleaning – combustion analysis and drain point at front of boiler
- Built in boiler sequence controls capable of controlling up to 16 boiler modules and hot water circuits
- Low noise to enable installation close to building occupants
- Environmentally friendly low NOx emission (European Class 6)
- 6 bar rated heat cell
- Air inlet filter for clean combustion and reduced noise
- Simplified primary circuit design with a choice of complete optional kits from Hamworthy to include – flow and return pipework kit, optional matched boiler pumps, low loss header with combined air and dirt separator, connection points and manifold extension kits
- MCPD - The Medium Combustion Plant Directive (MCPD) is legislation that regulates individual combustion plants with a rated thermal input greater than or equal to 1MW but less than 50MW. The Upton UF1050-3 falls into this category. The boiler is compliant with the emission limit values but registration/permission is required from the relevant authority before the plant can be put to service. Find out more here.
- New build projects
- City centre, roof top and basement plantrooms
- Restricted space plantrooms
- Large commercial and public buildings including schools, hospitals and hotels
- Medium sized commercial and public buildings including schools, hospitals, offices and hotels
- Locations with substantial and continuous heating load including hospitals, care homes and hotels
- Pipework header kits to include matched boiler pumps, safety relief valve and automatic air vent
- Low loss header with integrated air and dirt separator (Want to know `What is a low loss header?`)
- 3 port extension manifold
- Blanking plates with tappings for system safety relief valve and pressurisation unit
- Multiple boiler controls
- Room & outside temperature sensors
- LPB bus communications modules
- Zone control
- DHW cylinder sensor kit
- Flues available
- Single Boiler Controls
- Multiple Boiler Controls
- Choose from a wide range of service contracts to help maintain optimum performance
- Book commissioning at the same time as placing your order for improved warranty terms.
