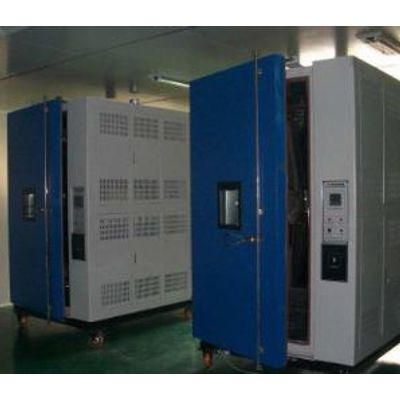

QINSUN - Model XY-PV -UV photovoltaic module UV aging tester
Solar photovoltaic module UV pretreatment test chamber is specially designed for solar photovoltaic module temperature and humidity and similar UV pretreatment environment test, mainly used for solar module materials to assess such as polymer and protective layer and other materials to resist UV irradiation ability, in the pretreatment test process can quickly and realistically reproduce the sun, rain, dew and other environmental and damage to the material: through this test chamber pretreatment system only needs a few days or A few weeks, can reproduce the outdoor need months or years to produce damage: including fading, discoloration, brightness loss, chalking, cracking, burnt, brittle, strength loss and oxidation, reliable aging test data can be made to the product weathering (anti-aging) to make accurate correlation predictions, and help the selection of materials and formulations, optimization
2.1 IEC 61646：2008 Test standard for thin film solar photovoltaic modules
2.2 IEC 61215:2016 Ground-mounted photovoltaic (PV) modules Design quality and type approval
2.3 IEC 61730:2016 Safety qualification of photovoltaic (PV) modules
2.4 UL1703：2015 Safety certification standard for flat panel solar modules
2.5 GB/T 9535：2006 Design qualification and type approval of crystalline silicon photovoltaic modules for terrestrial use
2.6 GB/T18911：2002 Design qualification and sizing of thin-film PV modules for terrestrial use
3.1 Model: XY-PV-UV020
3.2 Specification: D1200×W800×H2000(mm)
3.3 External dimensions (approx.) D1650×W1550×H2250(mm)
3.4 Temperature range: RT+10℃～80℃(controllable)
3.5 Component surface temperature: 60±5℃
3.6 Temperature fluctuation: ±0.5℃
3.7 Number of lamps: 24 (power 40W/branch, length 1220mm/branch, tube diameter 38mm/branch)
3.8 Lamp installation mode: UVA-340 and UVB-313 staggered installation
3.9 Ultraviolet wavelength: 280 ~ 400 (385) nm
3.10 Minimum irradiation: wavelength range 280n m-320nm: 7.5kWh/m-2
3.11 Wavelength accuracy: ≤±15%
3.12 Irradiance uniformity: ≤±15%
3.13 Lamp center distance: 70㎜
3.14 Test time: 0～9999H Adjustable
3.15 Blackboard temperature: 40℃～65℃
3.16 Power supply: three-phase five-wire AC380±10%, 50/60Hz
3.17 Installation power: about 6.5KW
ps: (WLJCDM809)
