Hering VPT - Model EOK Series -Vacuum Oil Purifying Plants

Transformer insulating oil quality is the key to high transformer performance

The insulating oils of your current and future transformers have to meet the highest standards regarding quality and purity to perform at their highest level of efficiency. During operation, the insulating fluids have to act both as an effective coolant and dielectric material. Using the right insulating oil with the right properties is, therefore, an essential part of the transformer business.

HERING EOK Transformer oil purification

Our EOK transformer oil purification product line is the leading brand in oil purification technology. EOK oil purification plants provide you with decades of experience in the transformer maintenance sector all powered by German Engineering. The EOK Series is the benchmark in transformer oil degasification and transformer oil purification technology.


HERING EOK Transformer oil purification systems help you get the most out of your transformers

The usage of HERING EOK Transformer oil purifying plants improves the dielectric properties of your transformer insulation by lowering the water content within the fluids and materials. Additionally, our EOK Series will perform an oil degasification and remove the more volatile acids. This creates better performing transformer insulation and, thus, builds the foundation for advanced transformer performance.

You have to make sure that the transformer is filled with a high quality insulating fluid during initial impregnation and filling. But your responsibility does not stop there. As the insulating oils in modern transformers are exposed to ever increasing voltages and the resulting stresses, adequate handling and treatment of the transformer oil becomes more and more important during the transformer’s lifetime as well.

The transformer oil filtration system is a method of removing the suspended sludge materials present in the oil. Our high quality transformer oil filtration machines are available to process the contaminated oil. We will tailor each vacuum transformer oil purification / transformer oil degasification plant specifically to your requirements.

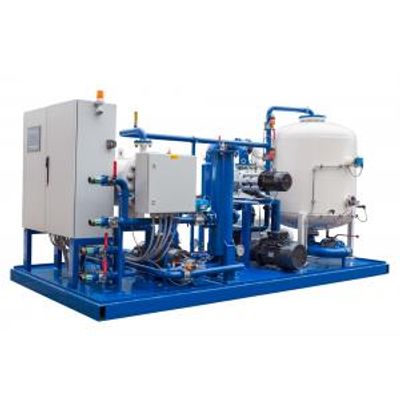

The standard purification plant is generally equipped with oil filters, oil pumps, an oil heater, a vacuum pump and the degassing tank. The application of the vacuum process causes a decrease of the boiling point by reducing the pressure. The oil heater consequently heats up the oil in order to evaporate water inside the liquid. The vacuum process, therefore, performs a degasification of the transformer oil. Other contaminations are removed using a filter system. The oil used in transformer has its own limitations and thereby   necessitates the research to improve the characteristics of the transformer insulating oil to serve better.
