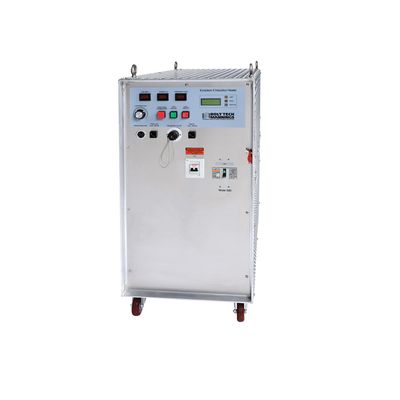

Bolttech - Model S11,100 kW, 8-25 kHz - Variable Frequency Induction Machine for Turbine Bolt Heating
The S11,100 kW, 8-25 kHz Variable Frequency Induction Machine is engineered specifically for the task of turbine bolt heating. This machine operates within a frequency range of 8-25 kHz, allowing for precise and controlled heating processes. It provides a high power output of 100 kW, making it suitable for demanding industrial applications. The variable frequency functionality ensures adaptability and fine-tuning according to specific project requirements. This induction machine is a vital tool for maintenance operations in power generation facilities, primarily aimed at ensuring the integrity and performance of turbine bolts. Additional features and specifications can be obtained through direct contact with the manufacturer.
S11, 100 kw, 8-25 kHz Variable frequency Induction Machine designed for turbine bolt heating. The machine has the following standard features:
- Built into a Self Contained Cabinet
- All control functions on single board
- Built in water pump to increase output water flow
- 4 swivel casters (shock absorbing wheels) for easy mobility
- Remote pendant with 35’ lead to enable on/off operation at work area
- Leak proof fittings on main water supply and drain
- Ground fault protection circuit
- Analog meters on front panel for both power level and frequency
- LCD display to show status of power supply
- 0-100% adjustable power level
- Cooling water requirement: 10 gpm @ 40 PSI.
