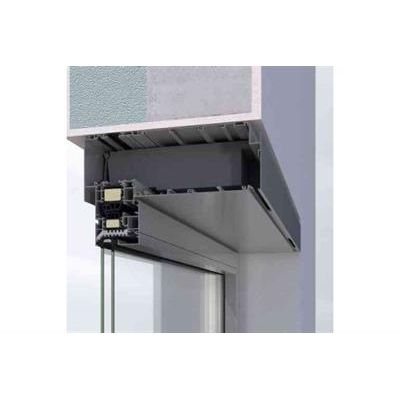

Schuco VentoTherm - Ventilation System Twist
Decentralised, window-integrated ventilation system with incoming air, outgoing air and heat recovery – controlled exchange of air in specific rooms without opening the window. The efficient, multifunctional system solution in coporation with Renson ensures controlled air exchange and meets the highest energy efficiency requirements; max. 80% heat recovery ensures a high degree of energy savings.
Thanks to the modular construction, Schüco VentoTherm Twist can be expanded, which can also increase the air flow. This therefore allows the ventilator to be adapted perfectly to match the required air quantity. Schüco VentoTherm Twist is therefore the efficient system solution for small and large rooms in newbuilds and renovation projects.
Air quality sensors ensure demand-driven regulation for an optimum indoor climate. At the same time, Schüco VentoTherm Twist protects against draughts and keeps insects and pollen out.
- Horizontal and vertical integration in tested Schüco window systems
- Time-saving, economical and simple system installation
- Cost-saving integration in the building envelope without suspended ceilings or wall openings; fire compartments also do not need to be accounted for in the planning
- Max. air exchange rate
- 24 - 144 m³/h
- Max. heat distribution level
- 0.8
- Energy efficiency class
- A
- Min. unit width
- 750 mm
- Filter class of incoming air
- G3 / optional F7
- for system basic depths
- 70 - 120 mm
- Dimensions (w x h x d)
- (750-6000)x110x345 mm
- Operating limit
- - 15 °C
- Watertightness
- Class 9A
- Max. sound reduction D,n,e,w
- 50 db(a)
