4) Inch - Venturi Steam Traps

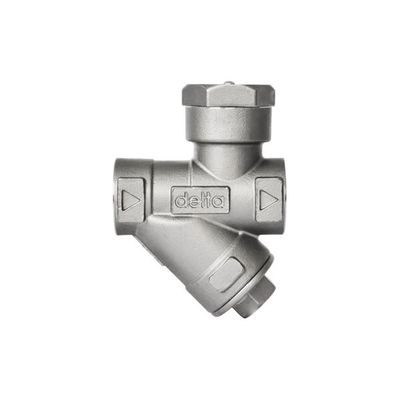

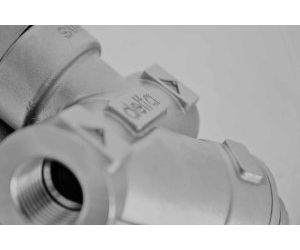

The DSV Venturi Steam Traps are designed for multipurpose applications from line drainage, trace heating, through to medium heat exchanger applications.

Most popular related searches

Applications

Trace heating
Line drainage
Small to medium process applications

Benefits

Dual primary and secondary strainer system giving double blockage protection
Removable venturi insert allowing superior sizing flexibility
Simple in-line maintainability
In-line access to insert orifice, primary and secondary strainers via the top and bottom caps
Deflective cone insert protects inlet from solids and blocking
Constant discharge principal improves heat transfer
20 Year guarantee

The Delta DSV Venturi Steam Trap is designed for multipurpose applications from line drainage and trace heating, through to small to medium heat exchanger applications. The trap has a primary and secondary integrated strainer and a removable venturi insert. The body of the trap does not have to be removed from the line for maintenance purposes. Access to the insert and both primary and secondary strainers is via the top and bottom caps.

Standards

This product fully complies with the requirements of the European Pressure Equipment Directive 97/23/EC as well as ASME B31.1 and B31.3 and SANS 347:2007.

Certification

Manufacturer’s pressure test report and material certification is available with this product. Any additional certification requirements to be stated at time of order.

Sizes and Connections

DN15 (½”), DN20 (¾”) Threaded BSP or NPT, Socket Weld

Pressure / Temperature Limits

PMA (Maximum Allowable Pressure) 62 bar g (900 psi g)
TMA (Maximum Allowable Temperature) 450¡C (845¡F)
PMO (Maximum Operating Pressure) 62 bar g (900 psi g)
TMO (Maximum Operating Temperature) 450¡C (845¡F)a

Guarantee

20 year product guarantee as per standard terms and conditions

Dimensions and Weights

Features & Advantages

20-Year Guarantee
Steam saving Delta Venturi Steam Traps advantages include that it comes standard with our 20-year product quality and performance guarantee.

Minimal Steam Trap Maintenance

No Moving Parts
No Spare parts required
Permanently eliminate the need for steam trap surveys
Savings on labour for repairing steam traps
Unaffected by thermal shock or water hammer

Environmentally Friendly

Efficient steam trap system enables a considerable steam saving
CO2 emissions are reduced through reducing steam wastage through failed traps
Save water
Save water treatment chemicals
Save boiler fuel (gas, oil, coal or electricity) by up to 30%

Improved Efficiencies

Due to the traps unique DSV™ venturi orifice design there is TRUE continuous condensate discharge without any open/close cycles rather than intermittent discharge like traditional mechanical type steam traps such as ball float or inverted bucket traps.
Upstream control valves have a more linear steam supply to the process equipment rather than the traditional continuous peak and trough supply.
A thinner film of condensate is accumulated on the heating surface of the process equipment allowing improved heat transfer.
Through permanently eliminating failed steam traps passing live steam into the condensate return system and pressurising this system, a more balanced downstream pressure is achieved allowing faster condensate discharge and improved heat transfer.
Minimal thermal energy loss due to the Delta DSV™ Steam Traps compact design (in some cases up to 20 times smaller than mechanical steam traps)

Advantages

Energy Saving Steam Traps (watch video)
Reduce boiler fuel costs by 20-30%
Save steam, water and water treatment chemicals
No moving parts to maintain
Constructed completely from stainless steel
Require no spare parts, testing or monitoring equipment
No steam trap surveys required
Guaranteed for 20 years
Our steam traps are not consumables, they far outlast conventional steam traps

Delta Venturi Steam Traps Work Very Differently to Conventional Mechanical Steam Traps.

Delta venturi vs. conventional mechanical steam traps.

Our steam traps have no internal moving parts. Because we have no internal moving parts our steam traps do not fail and break and do not need to be repaired or require spare parts. Because our steam traps have no internal moving parts we guarantee our steam traps for 20 years on steam distribution lines and process applications. Our steam traps work on the principle of downstream flash steam to self-regulate the upstream condensate flow and allow condensate to be removed and keep the steam in the system.

Conventional mechanical steam traps all use some form of mechanical system to open and close. Some use an inverted bucket or a ball or bimetallic element or discs or thermostatic elements but they all use some form of moving part that allows the valve to open and close.

Because these conventional steam traps have mechanical parts, these valves open and close hundreds of times a day, thousands of times a month and millions of times a year.

After a period of time, these moving parts start to wear out and eventually they will break and then the conventional mechanical steam traps will start to leak large amounts of steam, which is both expensive and causes unnecessary pollution.

Delta steam traps are guaranteed for 20 years against failure and are more reliable than any conventional steam trap in the market.
