Endeas QuickSun - Model 550Ei - Versatile Module Inspection System for Laboratories and Quality Control

SHARE

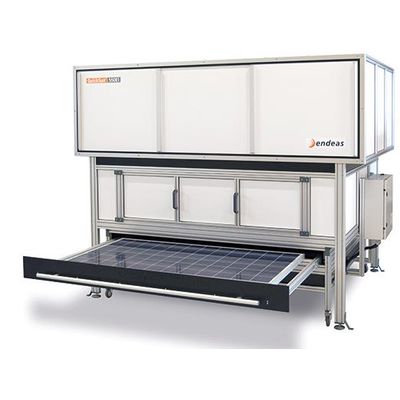

QuickSun 550Ei is a versatile testing system for qualifying of PV modules with dimensions up to 105 x 205 cm2. Basic set up includes a top class solar simulator which measures modules in sunny side up position enabling e.g. soiling simulations. Several additional measurement methods can be integrated to the same system including high resolution EL imaging with analysis software from one of the most recognized EL system suppliers. Several additional measurement methods can be integrated to the same system including high resolution EL imaging, bypass diode functionality test, temperature coefficient measurement, and true nA scale leakage current measurement.

Most popular related searches

photovoltaic testing system

solar simulation

photovoltaic testing

photovoltaic module

solar module measurement

Class A+A+A+ solar simulator with 105 x 205 cm test area
Reliable results for the highest efficiency modules (PERC, HJT, IBC, bifacial)
EL imaging and analysis with 200 μm resolution
true leakage current measurements with nA scale sensitivity
Reference bifacial module measurements

Contacting Module cables 4-wire
Load feedback controlled MOSFET adjustable bias 0 – 4.5 V
Voltage sweep Isc -> Voc, Voc -> Isc Capacitance Compensation (CAC) method
Voltage measurement 1 – 100 V (other scales on request) Accuracy better than 0.2 %
Current measurement 0.5 – 25 A (other scales on request) Accuracy better than 0.2 %
Irradiance control 100 – 1200 W/m² Resolution 1 W/m²
Pmp repeatability (Max-min)/(max+min) < 0.25 % Std. < 0.1 %
Average flash tube lifetime 500 000 flashes
Temperature coeff. measurement RT + 10 °C IEC 60891
EL image 12 – 40 MP Typ. exposure time 3–5 secs
Hipot Max 6.5 kV 0.1 nA measurement sensitivity
Ground Bond 0.2 mohm sensitivity
Operation temperature 15–35 ºC
Mains utilities 3~, 400 Vac, 3 x 16 A, 50-60 Hz
Total dimensions, weight 310 x 180 x 250 cm 850 – 1100 kg, depending on options
