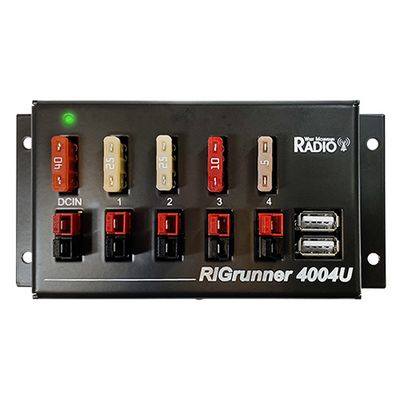

West Mountain Radio - Model RIGrunner 4004 USB -Versatile Power Distribution Unit
The RIGrunner 4004 USB is a versatile power distribution unit designed to manage power for various radio devices and other equipment. Capable of delivering up to 40 amps across its four outlets, this unit ensures that each connected device receives reliable power. Additionally, it features a dual USB socket for charging portable devices, making it an efficient solution for a mobile or fixed setup. Integrated with Anderson's Powerpole® connectors, known for their durability and ease of use, the RIGrunner also includes safety features to prevent overloads and short circuits. Designed for ham radio enthusiasts and other technical users, the RIGrunner 4004 USB supports seamless power management with advanced connectivity options, ensuring that all your electronic equipment operates smoothly and efficiently.
The RIGrunner 4004U can deliver up to 40 amps total through 4 outlets and includes a dual USB socket for charging all your portable devices that need a USB socket for charging.
- Each port has an RFI protection capacitor
- Each fuse has a blown LED
- Each port uses high current Anderson Powerpole® connectors with 0.001 ohm contact resistance
- Overall Dimensions (maximum, w/o cables) : 1.4" H x 4.7" W x 3.0" D
- Weight : 7.2 oz.
- Maximum total current : 40 amps
- Maximum single individual outlet current : 40 amps (fuse protected)
- ICAS current rating (fuse limited) : 37 amps
- USB charge current : 4A max for both ports
- Built in USA to IPC-610 commercial manufacturing standards by an ISO9002 facility.
- Printed circuit board .062 FR4 material, extra heavy 3oz. copper, with greater than 1" wide high current traces.
- Double sided, plated through holes, solder mask over bare copper, silk screened commercial grade printed circuit board.
- Enclosure: .062 aluminum, with attractive and extremely durable powder coat painting and clear silk screen labels.
- Power connectors: exclusively Anderson Power Products® Powerpole®.
- Connectors are arranged according to the ARES/RACES standard (see our links).
- Fuses installed are standard ATC/ATO automotive fuses available in 10 values from 1 to 40 Amps.
- Stainless steel hardware with PEM™ threaded mounting standoffs.
