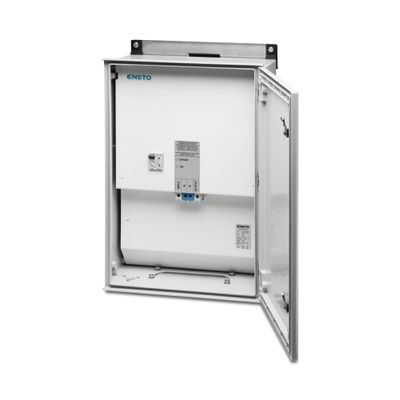

Ensto - Model VC6K-1P-000 - Voltage Controller
FromEnsto Group
Ensto Voltage Controller is a cost-efficient solution for correcting unwanted voltage variation in low voltage 1-phase networks. It is installed close to the consumer connection point, where it measures the feeding line voltage and automatically stepwise increases or decreases the output voltage.
Most popular related searches
voltage control
voltage controller
low voltage distribution
power quality
low voltage network
power quality control
automatic voltage controller
low voltage power
power automation
distributive power
Dimensions
- Weight: 30 kg
- Height: 350 mm
- Width: 600 mm
- Length: 400 mm
- Dimensions l x w x h: 400 x 600 x 350
Electrical values
- Number of phases: 1
- Nominal current A: 25 A
- Operating voltage: 230 V
Ratings
- Degree of protection: IP54
- Automatic voltage correction – Correction range -10%..+15% of the actual voltage.
- Cost-efficient – Economic solution compared to re-building or reinfocing the network.
- Safe – Double isolated, no need for grounding.
- Compact and easy to install – Delivered with pole installation accessories
- Quick to commission - No settings or calibration required.
- Environmentally friendly – Recyclable, free of oil.
Carton
- Size: 1 pce
- Depth: 550 mm
- Height: 270 mm
- Width: 660 mm
- Weight: 31.000 kg
- Volume: 98.01 l
Pallet package
- Size: 6 pcs
- Depth: 1200 mm
- Height: 960 mm
- Width: 800 mm
- Weight: 206.000 kg
- Volume: 921.6 l
