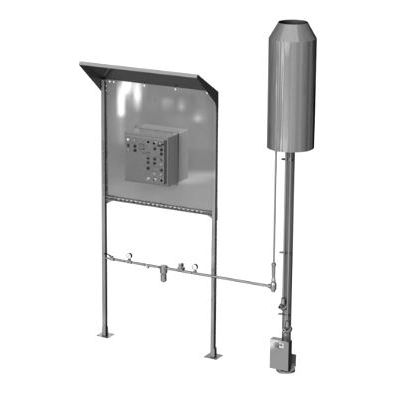

Groth Biogas - Model 8392B -Waste Gas Burner with Flame Front Ignition Technology
The 8392B Waste Gas Burner with Flame Front Ignition Technology is engineered primarily for biogas applications, offering a unique solution for waste gas burning requirements. This model incorporates an advanced pilot ignition system where ignition occurs at ground level, enhancing safety and convenience. The design ensures that the flame front is contained within specialized pilot ignition piping, which is efficiently directed towards a wind shield to ignite the gas stream reliably. This technology simplifies maintenance tasks, reducing operational downtime. It is particularly suited for industries including municipal wastewater treatment, food and beverage, dairy farms, and landfills. The device is configurable with varying specs for pressure switches, pilot fuel, and electrical options, affirming its adaptability for diverse industrial setups. Groth Biogas is a division of Energenecs, located in Saukville, Wisconsin.
The Groth Biogas Model 8392B Waste Gas Burner Flame Front Ignition Technology features technology that allows for the pilot ignition to occur at ground level. The “flame front” is contained within pilot ignition piping which is plumbed to the wind shield to ignite the gas stream. Easier maintenance of pilot ignition system is the major advantage of this technology.
- Size: 2” (DN 50) through 12” (DN 300)
- Material: All stainless steel construction in flame area
- Enclosure: Nema 4, Weatherproof
Pressure Switch Specs
- Explosion Proof: 4 – 20 InWC
- Range: 0.4 – 0.6 InWC Deadband
Pilot Fuel Specs
- Natural Gas — 4 InWC to 10 psig Supply Pressure
- LPG — 1 psig to 10 psig Supply Pressure
- Digester Gas 4 InWC to 10 psig Supply Pressure
- Pilot Consumption: 22-150 SCFH
Electrical Specs
- 115V, 1PH, 60 Hz, 10 AMP, grounded neutral Contacts for remote monitoring
- (1) NO, 3 AMP, “Flame On”
- (1) NO, 3 AMP, “Flame Failure”
- Optional Enclosure: Nema 4X, Nema 7
- Explosion Proof: 4 – 20 InWC
- Range: 0.4 – 0.6 InWC Deadband
- Natural Gas — 4 InWC to 10 psig Supply Pressure
- LPG — 1 psig to 10 psig Supply Pressure
- Digester Gas 4 InWC to 10 psig Supply Pressure
- Pilot Consumption: 22-150 SCFH
- Control panel sunshield
- Automatic ignition and re-ignition
- Pilot ignition system at ground level
- Stoichiometric pilot on all burners
- Efficient combustion with biogas BTU value as low as 400 Icu. Ft.
- Pilot System operates with gas pressures as low as 4 inWC
- Safely incinerates waste gases preventing fugitive VOC emissions
- Reliable pilot gas ignition system ensures that the waste gas is properly incinerated
