Augier - Model MODULO -Watertight Transformer

SHARE

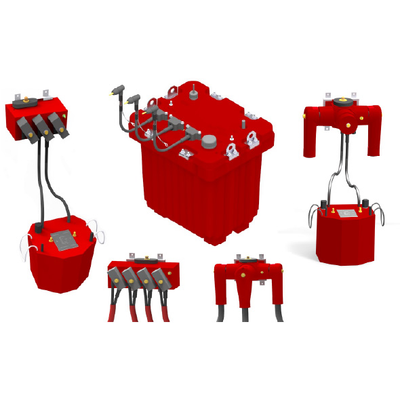

MODULO is watertight transformer, it consists of a transformer and a separate connection interface, the MODULO is to be installed directly in a pit or in a PTS substation.

Most popular related searches

dry-type transformer

transformer equipment

circuit breaker

transformer oil

low voltage cable

low voltage transformer

medium voltage cable

medium voltage cables

power transformer

Designed to operate in harsh conditions
Transformer equipped with medium voltage fuses
+-5% adjustment from 8 kVA
Medium voltage connection on flexible cable with factory-made plug
Thermal protection by one thermal probe

Plug-in lock
IP67 Low voltage cabinet with one or more circuit breakers

OVERALL DIMENSIONS: According to power rating
OPERATING VOLTAGE: 3200 V, 5500 V, 6600 V
POWER RATING: From 1 kVA to 160 kVA
FREQUENCY: 50 HZ
PROTECTION GRADE: IP68
DRY TYPE TRANSFORMER FOR SINGLE-PHASE TRANSFORMER UP TO 6 KVA
OTHER POWER RATING OR COUPLING TRANSFORMER, VEGETABLE OIL TRANSFORMER
LOW VOLTAGE CONNECTION ON CABLE LENGTH 4 METERS
OPERATING TEMPERATURE: From -15 to +40°c
ALTITUDE: From 0 to 1000 meters
