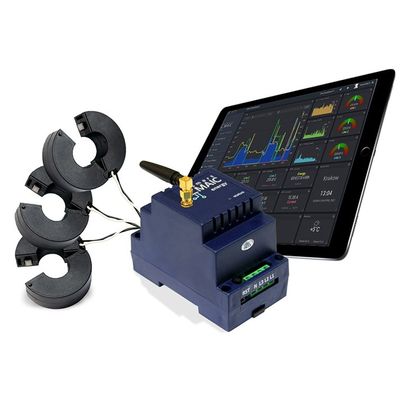

smart-MAIC - Model D103 CT 300A - WiFi 3-Lines Energy Monitor
Energy monitor smart-MAIC D103 for 3−Lines grid with Current Transformer type Clips up to 300A. Smart meter D103-300 produced in Extended version only. For measurements of large currents and installation on highly loaded lines. This model uses 300A current transformers up to 200kW for 3 lines grid. The smart meter provides separate bi-direction metering of power consumption and generation, and 5 second data intervals for API and MQTT.
- Energy Monitoring, Analysis and Control
- Monitoring of power supply parameters
- Wi-Fi Wireless interface / GSM Cellular (option)
- Free cloud data server
- Dashboard for data analysis and visualization
- One-Minute data detail
- Remote output management
- MQTT remote client
- API interface for developers
- DIN Rail mounting
- Voltage, [V]
- Current, [A]
- Active Power, [W]
- Reverse Active Power, [rW] (Extended ver.)
- Active Energy, [Wh]
- Reverse Active Energy, [rWh] (Extended ver.)
- Power Factor (cos?), [PF]
Current Transformer Rating: 100mA . . 300A
CT Type / Inner Size: Clips / 23 mm
High accuracy: ±0.5% F.S. (0.5 Class)
Max. Power at the controlled output: < 50W
Wireless Protocol: 2.4 GHz / IEEE 802.11 (b, g, n)
GSM Cellular (option): 2G EGSM900, DCS1800, GSM850, PCS1900
Data Collection interval: 1 minute
Storing Data without Internet: 17 days
Working Range Temperatures: -40 . . +60 º?
Power Supply: AC 100-240V, 50/60Hz, 0.1A
Size L?W?D: 90?67?52 mm (3 DIN modules)
