Leice - Wind Energy Measurement Lidar
The edge-cutting remote sensing Lidar technology has enabled Doppler Lidars to unleash tremendous opportunities for the offshore wind industry.
This wind energy measurement lidar is based on the working principle of coherent Doppler frequency shift and remote sensing lidar technology to provide accurate data for projects such as wind resource assessment, power performance verification and wind farm optimization. It has obvious advantages in safety, reliability and measurement accuracy. The first is security. This lidar is fully compliant with IEC 60825-1 Eye Safety Level 1, so it will not cause permanent damage to the human eye. Second is reliability. This lidar is equipped with an airtight anti-corrosion design that has undergone rigorous salt spray testing, which means it can effectively resist the erosion of sea wind and salt spray and ensure structural reliability. In addition, based on real-time attitude correction technology, its wind speed measurement accuracy can be guaranteed to be within the range of ±0.1 m/s. Interested in this product? Contact us now!
Wide scope of work
The operating range of this lidar can reach up to 12 kilometers, and it can realize three-dimensional real-time monitoring, so it can measure wind data from a long distance and in all directions.
High precision
Based on the 1550nm pulsed laser wavelength and correction algorithm technology, this lidar can achieve wind direction accuracy of less than 3° and average wind speed of greater than 2m/s.
Easy to install

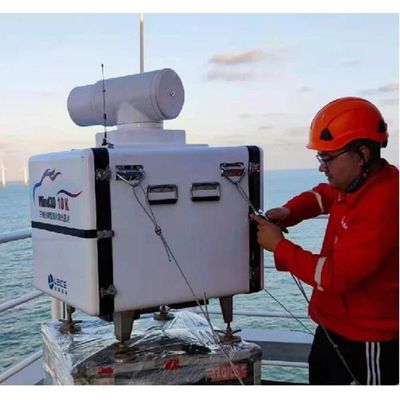

The volume of the entire wind energy measurement lidar is approximately 630×740×1075mm, so it does not take up a lot of storage space and is very easy to integrate into various offshore operating platforms.
Wide range of applications
This lidar has an IP66 protection rating, which means it can resist long-term corrosion from sea breezes. It can be fully applied regardless of inland, coastal or offshore harsh environments.
- Specifications: Parameters of Wind3D 6000/10K
- Working principle: Coherent doppler shift
- Wavelength: Pulsed laser @1550nm, Eye-safe Class 1 of IEC 60825-1
- Measurement range: 45m ~ 6000m, 60m ~ 10km/12km
- Range gates and resolution: >300 gates, max. resolution 1m
- Wind velocity range: 0~75 m/s
- Wind velocity accuracy: ≤±0.1 m/s
- Wind direction accuracy: <3°(average wind speed>2m/s)
- Working temperature: -40? ~60?
- Relative humidity: 0~100%
- Protection class: IP66
- Size: 630 x 740 x 1075mm
- Weight: <130 KGs
Offshore Wind Energy
- Accurate Wind Resource Assessment
- Power Performance Verification
- Improve Power Generation
- Turbine Wake Detection
