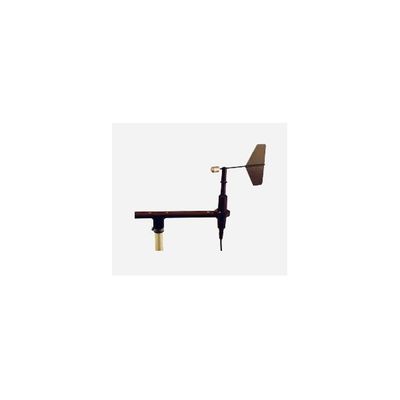

Campbell Scientific - Model 03301-L -Wind Sentry Vane
The 03301, manufacted by R. M. Young, is the wind vane included with our Wind Sentry Sets (03002, 03001). Although some customers have valid applications that require monitoring wind speed only (without direction), monitoring wind direction only (without wind speed) provides little useful information. For this reason, the 03301 is available for two purposes: As a replacement vane for a Wind Sentry Set that requires replacement of the vane only. As an "upgrade" for a customer that originally purchased only the anemometer and now wants to add the vane to make a complete Wind Sentry Set.
Most popular related searches
wind sentry
wind direction sensor
wind sensor
voltage regulation
voltage regulating
voltage regulator
voltage data logger
voltage data
- Sensor: Vane
- Measurement Description: Wind direction
- Operating Temperature Range: -50° to +50°C (assuming non-riming conditions)
- Mechanical Range: 360°
- Electrical Range: 352° (8° open)
- Sensor: Balanced vane; 16 cm turning radius
- Accuracy: ±5°
- Damping Ratio: 0.2
- Delay Distance: 0.5 m (1.6 ft ) 50% recovery
- Starting Threshold:
- 0.8 m s-1 (1.8 mph) with 10° displacement
- 1.8 m/s (4 mph) with 5° displacement
- Transducer:
- Precision conductive plastic potentiometer (10 kohm resistance)
- 1.0% linearity
- Life expectancy is 50 million revolutions.
- Rated 1 W at 40°C, 0 W at 125°C.
- Transducer Excitation: Requires regulated dc voltage (15 Vdc maximum)
- Transducer Output: Analog dc voltage proportional to wind direction angle with regulated excitation voltage supplied by the data logger
- Vane Length: 22 cm (8.7 in.)
- Weight: 170 g (6 oz)
