ENO - Model 136 -Wind Turbine
FromENO Energy GmbH

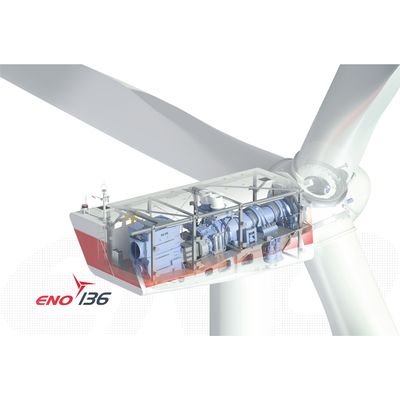

Reliability, performance and yield are the top priorities for low wind regions. The 66.8-metre-long rotor blades of the eno 136 represent an optimised flow of air and the aerodynamic high-performance design ensures maximum yields and economy of the wind turbine in low wind regions. With 14612m² of coated rotor area, 4,500 Kilowatts of rated output, the eno live.train solution and the advanced eno split.drive, the eno 136 presents an sophisticated system produced in Germany. Thanks to the combination of innovative solutions with excellent technical availability, the eno 136 is a high-quality investment in the future.
Most popular related searches
General
- Rated Power: 4.5 MW
- Cut-in wind speed: 3 m/s
- Rated wind speed: 13 m/s
- Cut-out wind speed: 25 m/s
- Tilt angle: 5°
Rotor
- Diameter: 136.4 m
- Nominal speed range: 10.2 - 12.0 rpm
- Swept area: 14.612 m²
Rotor blade
- Manufacturer: eno
- Material: GFK / CFK
- Length: 66.8 m
Gears
- Model: Planetary-/spur gearing
- Gear ratio: approx. 1:150.8
Generator
- Type: Synchronous generator
- Design: slip ringless / brushless excitation

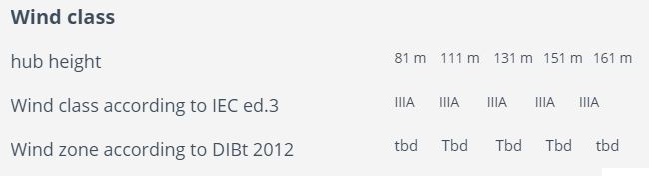

- Tower (hub height): 81 m, 111 m, 131 m, 151 m, 161 m
Converter
- Type: Full power converter
- Model: Modular IGBT inverter topology
Sound power level
- without serrations: 105.5 dB(A)
vw, hub height: reference yield in MWh/a
- 5,0 m/s: 7.258
- 5,5 m/s: 9.123
- 6,0 m/s: 11.021
- 6,5 m/s: 12.899
- 7,0 m/s: 14.713
- 7,5 m/s: 16.435
