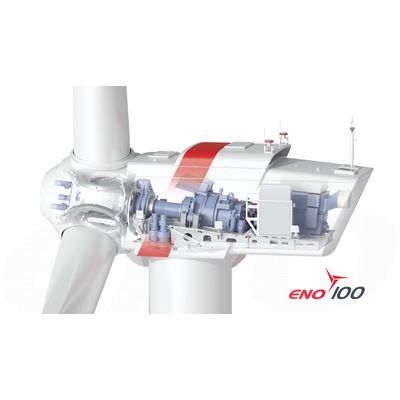

ENO - Model 100 - Wind Turbine
FromENO Energy GmbH
The latest feed-in technology and robust turbine construction. The eno 100 stands for highest efficiency of turbine design. Based on the tried and tested platform eno 92, the wind turbine has the ideal combination of compactness, solid machine construction and increased yield with a rotor diameter of 100 metres and thus around 18 percent more rotor surface area. The design of the eno 100 takes into account the maximum utilisation of low-wind locations in particular. Our own developed controls and the modern full-scale converter technology guarantee sure operation in demanding networks.
Most popular related searches
General
- Rated Power: 2.200 kW
- Cut-in wind speed: 3 m/s
- Rated wind speed: 12 m/s
- Cut-out wind speed: 25 m/s
- Tilt angle: 5°
Rotor
- Diameter: 100.5 m
- Nominal speed range: 5.5 – 14.2 rpm
- Swept area: 7,933 m²
Rotor blade
- Manufacturer: LM Wind Power
- Material: GFK
- Length: 49 m
Generator
- Type: Planetary-/spur gearing
- Gear ratio: approx. 1:111
Generator
- Type: Synchronous generator
- Design: slip ringless / brushless excitation
- Tower (hub height): 99 m, 125 m
Converter
- Type: Full power converter
- Model: Modular IGBT inverter topology
Sound power level
- calculated (Mode 0)1: 105.9 dB(A)
Wind class
- Hub height: 99 m 125 m
- Wind class according to IEC ed.3: IIIA IIIA
- Wind zone according to DIBt 2012: WZ 3 WZ 3, GK II GK II
1 noise-reduced operation modes available on request
