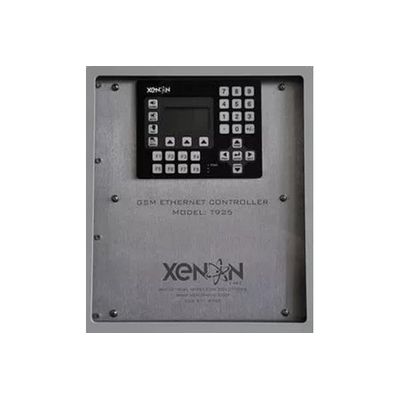

Xenon - Model T925 - Wireless Ethernet Controller
FromXenon Inc.
Using customizable web and HMI Interfaces over secure VPN connections, the T925 Wireless Ethernet Controller allow multiple users to simultaneously monitor, log and control field device all across the U.S. A variety of network providers, communications protocols, and interface options allow you to customize the T925 Wireless Ethernet Controller to suit your specific application.
Most popular related searches
- Utilizes nationwide or worldwide cellular networks from your choice of wireless providers or all major wireless providers
- Non-proprietary, open source infrastructure enhances compatibility and maintainability
- VPN tunneling allows up to 250 simultaneous connections
- Wireless accounts serviceable by end user or through the XeNet streamlined service with incremental-usage billing
- Low power consumption easily accommodates solar applications
- Customized systems available to meet your specific applications or environmental needs
Wireless Network Performance
USA Wireless Provider Compatibility: AT&T, T-Mobile, Verizon, Sprint, Midwest Wireless, Alltel Wireless, and Cellular One plus Sixteen International carriers.
Serial Device Interface
- Interface: Software-selectable RS232, RS422 or RS485, 2-wire RS485 & 4-wire RS485/422 supported
- Connectors: 2 RS232 + 1 RS485/422 expandable to 3 RS232 + 2 RS485/422 or more with optional serial device server
- Data Rates: 300-115200 bps
- Data Encryption: 128/256 bit AES encryption
Remote SMS Alarming/Control
- Receive alarm/status messages via text
- Control devices via SMS
Ethernet Interface
- Connectors up to 7 RJ45 devices
- Standards: ARP, UDP, TCP, Telnet, DHCP, HTTP, SNMP
Direct I/O Interface
- 4 Digital Inputs (11-30VDC)
- 4 Digital Relay Outputs (24VDC 5A)
- 4 Analog Inputs (0-10VDC / 4-20mA)
- 2 Temperature Inputs (TC/RTD) (Optional)
Management
- Device Installer GUI, SNMP
- Telnet login, HTTP
Power Sources
- 120 VAC
- 24VDC
- 24VDC (solar)
Power Consumption
- Nominal: 15 Watts
- Maximum: 25 Watts depending on options selected
Environmental
- Operating: 0° to 60°C (32° to 140°F)
- Storage: -30° to 60°C (-22° to 140°F)
Enclosure
- Rating: NEMA 4X
- Material: Nonmetallic
- (Optional) Viewing Window
- Pole Mount Kit
- Dimensions: 16W x 18L x 9D (inches)
- 40.6W x 45.72L x 22.9D (mm)
Agency Approvals
- FCC
- C/UL
- CSA
- CE
Warranty
- One year limited warranty
Shipping Dimensions
- 24W x 24L x 24D (inches)
- 61W x 61L x 61D (mm)
- 12.2 lbs
