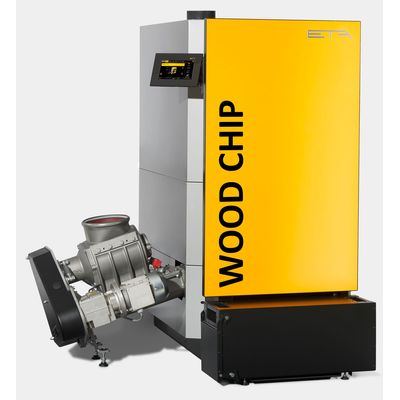

ETA eHACK - Model 20 to 240 kW -Wood Chip Boiler with Integrated Precipitator

A perfect system

Sophisticated systems are at work in the ETA eHACK: in combination with the ETA combustion regulation, the lambda probe provides for the highest efficiency, even with varying fuel qualities. This team guarantees that the right amount of oxygen is constantly supplied to the respective fuel. The single chamber rotary valve developed and patented by ETA is a guarantee for safe operation. It reliably prevents the fire from the combustion chamber from reaching the fuel store. Wood pieces that are too long are simply cut.

Clean, economical, efficient

Even the process utilised by the ETA system to convey wood chips to the boiler is extremely economical, because the spur gears used for this purpose require much less power than conventional transport screws. However, to maintain ideal fuel consumption and thus low heating costs, the interior of the boiler, such as the combustion chamber and heat exchanger, must be regularly cleaned of dust and ash. The ETA de-ashing system functions fully automatically – and accomplishes much more than all other systems currently on the market: it even removes dust from the flue gas.

Cleaning with voltage

The amount of dust by-product in the flue gas can vary greatly, depending on how dry the wood chips are and how much bark has been processed. In order to comply with ever stricter emission limits, having a precipitator is increasingly important. In principle, this works in such a way that the dust particles floating in the flue gas are energized and ionized, causing them to accumulate on the inner wall of the separator instead of escaping through the chimney. Until now, a separate device with its own de-ashing system was required. This is very cumbersome because it requires two ash bins to be emptied, among other things.

Space-saving: integrated precipitator

The ETA eHack is the first unit to allow for the precipitator to be integrated. This is made possible by the completely novel ETA de-ashing system, in which the whole boiler, i.e. the combustion chamber, the heat exchanger and the precipitator are cleaned fully automatically with just one drive. Even large foreign bodies in the ash, such as nails or stones are no problem for the robust segmented rotating grate and the powerful transport screw. The extra-large ash box only needs to be emptied occasionally. And this too is very easy - even if the floor is uneven. This is thanks to a special guide plate on the box for a hand cart.

Heating control by touchscreen, mobile and PC

Located directly on the boiler is a 7-inch touchscreen that allows for intuitive control of all components of the heating system, such as the buffer storage tank and solar collectors. And the heating system can be easily controlled for free via the internet through the www.meinETA.at platform! The only requirement is an internet-capable LAN outlet in the boiler room.
