Hyzon products

Hyzon - High-Efficiency Hydrogen Fuel Cell

Hyzon specializes in producing sophisticated hydrogen fuel cells that both provide high power output and emission-free operation. Their technology leverages the chemical reaction between hydrogen and oxygen to generate electricity, emitting only water as a byproduct. Known for their compact design, Hyzon's most advanced model, the 200kW fuel cell system, is noted for its efficiency and reduced physical footprint, owing to a single stack configuration. This makes it 30% smaller and lighter than comparable dual-stack 110kW systems, also achieving 25% cost savings in manufacturing and a 20% boost in fuel efficiency. Key components of Hyzon's fuel cell system include the Membrane Electrode Assembly for maximizing power production per area and the Hybrid Bi-Polar Plate for enhanced durability and reduced weight. Additionally, a single, simplified set of Balance of Plant components streamlines the entire system. This suite of innovations underscores Hyzon's commitment to advancing hydrogen-fueled power, suitable for industrial applications where high performance and sustainability are integral.

Vehicles

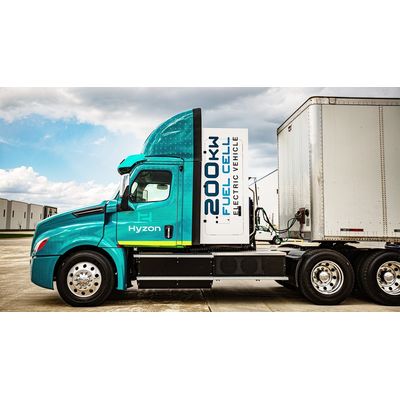

Hyzon - Hydrogen Fuel Cell Electric Truck

The Hyzon HyHD8-200 is a Hydrogen Fuel Cell Electric Truck designed for heavy-duty applications with an emphasis on zero emissions. Equipped with a 200kW fuel cell powertrain, this vehicle offers a continuous electric motor torque of 1,180 lb-ft and peaking at 1,770 lb-ft. It integrates a high voltage battery with an energy capacity of 110 kWh and operates at 700 volts. The electric motor delivers 275 kW (374 hp) continuously and peaks at 450 kW (612 hp). The vehicle's driving range typically extends up to 350 miles, supported by 50 kg of hydrogen stored in cylinders working at 350 bar pressure. Built on a Freightliner Cascadia Day Cab chassis, it features a maximum governed speed of 55 mph, extendable to 65 mph upon request. For enhanced safety and monitoring, the HyHD8-200 includes features like backup alarms, collision warning and mitigation systems, blind spot detection, and lane guidance systems. The vehicle also has a 2-year full bumper-to-bumper warranty and a 5-year/200,000-mile powertrain warranty. Hyzon facilitates hydrogen access through partnerships and ensures maintenance support through service partners.

Hyzon - Hydrogen Fuel Cell Electric Powertrain

Hyzon’s HyHD8-110 is a hydrogen fuel cell electric powertrain designed for heavy-duty applications. The powertrain delivers a peak power of 450 kW (612 hp) and continuous power of 275 kW (374 hp). Equipped with a 110 kW hydrogen fuel cell and a high voltage battery of 110 kWh, the vehicle boasts impressive torque figures of 1,180 lb-ft continuous and 1,770 lb-ft peak. It supports a driving range of up to 350 miles and can be refueled in about 15 minutes, making it a practical alternative to traditional diesel vehicles. The drive systems are electric, deriving the range from the 50 kg hydrogen onboard. The vehicle features a Freightliner Cascadia chassis with a maximum speed governed at 55 mph, expandable to 65 mph if needed. It includes advanced safety features like electronic stability control, backup alarms, collision avoidance, blind spot detection, and lane guidance systems. Maintenance and service are supported by Hyzon’s partner network to ensure optimal performance.

Hyzon HyMax Series

Hyzon - Hydrogen Fuel Cell Electric Trucks

Hyzon's HyMax Series offers a range of hydrogen fuel cell electric trucks designed to meet diverse operational needs while eliminating carbon emissions. The series is available in multiple configurations including 24-tonne, 46-tonne, and 70-tonne models. These trucks are powered by hydrogen fuel cells that combine hydrogen and oxygen to produce electricity, powering the electric motor and/or battery, resulting in zero emissions. The 24-tonne model features a 160 kW continuous electric motor with a peak power of 250 kW, a 70 kWh high voltage battery, and 80 kW continuous fuel cell power. It has an on-board hydrogen capacity of 30 kg and a typical driving range of 400 km. The 46-tonne configuration offers a continuous motor power of 190-295 kW, a battery capacity of 100-110 kWh, and fuel cell power ranging from 110 kW to 200 kW, with a maximum hydrogen capacity of 50-60 kg and a typical range of 680 km. The 70-tonne model features similar motor and battery specifications, with a fuel cell power of up to 240 kW and a hydrogen capacity of 50-60 kg, providing a driving range of 600 km. These trucks aim to offer the power, range, payload, and refueling times similar to conventional diesel vehicles while focusing on safety, enhanced acceleration, and reduced noise pollution. Hyzon also ensures service and maintenance support through its network of service partners and provides access to low-to-negative carbon intensity hydrogen for its clients.

Hyzon - Hydrogen Fuel Cell Electric Trucks

The Hyzon HyMax Series offers hydrogen fuel cell electric trucks designed for heavy-duty applications with zero emissions. Available in 24, 46, and 70-tonne configurations, these vehicles combine the benefits of hydrogen fuel cells with the performance of traditional diesel trucks. The 24-tonne model features a driving range of 400 km, a 160 kW electric motor, and a 70 kWh battery. The 46-tonne variant offers a range of 680 km, a motor producing 190-295 kW, and a 100-110 kWh battery. The 70-tonne model includes similar power specifications and a range of 600 km. Each model operates at a working pressure of 350 bars and includes high-capacity hydrogen storage, ensuring quick refueling and extended operational times. Designed with driver safety and efficiency in mind, these vehicles provide rapid acceleration, smooth driving experience, and reduced noise pollution, emulating the operational capabilities of diesel engines while producing only water vapor emissions.
