Prism Integrated Solutions Inc. products

The Gas-Tight Tank Package is a quick and dependable method to produce your single well site or non-utilized sites during drilling programs. Our package offers more features and benefits when compared to other systems and operates under a wide range of production conditions.

Designed for compressor blow down, emergency pressure release and flows that contain any liquid content. Can be built as self support or guy wire support, based on available space on site, and they can be equipped with any ignition option.

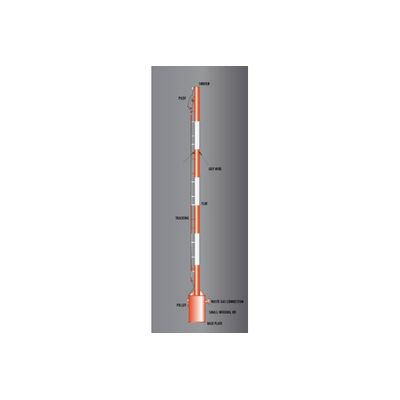

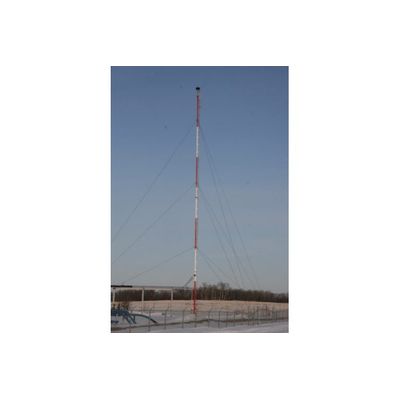

Designed for small oil batteries and processes that do not generate water condensate. They do require a larger foot print area due to the guy wire support system and they can be equipped with any Prism ignition system.

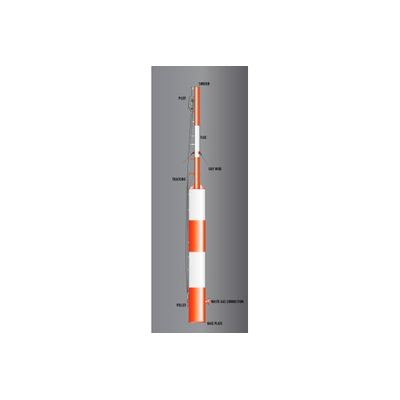

Designed for gas well locations where high volumes of gas are blown down for maintenance reasons. The large integral base knockout ensures that condensates flowing from the well are contained in the knockout and not sprayed around causing a dangerous condition. These can be guy wire or self-supporting depending on available space and conditions.

Designed for compressor blow down, emergency pressure release and flows that do not contain any liquid content. This design works well in situations where space on the site is limited. Equip them with any ignition option. (Underground or above ground knockouts can be placed in front of these)

The true fail-safe design of the Prism Premier Pilot is dependable and consistent under the harshest of environments, the Auto Relight is used to relight the pilot in the rare case where flame failure may occur.

Spark on demand or programmable to custom intermittent ignition scenarios. Available in a 12 or 24vdc Solar stand alone system. General area and Class I Div 1 applications. Only approved electrical components used in manufacturing with CSA certification available. Hand/Off/Auto Controlled. Designed to withstand hard environments and perform consistently.

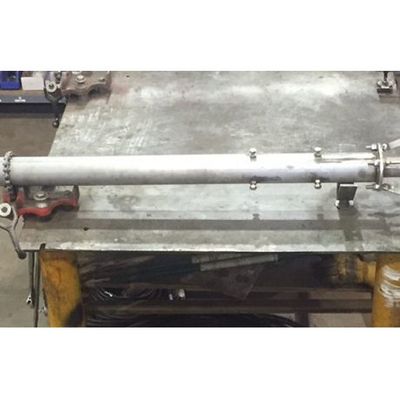

The DFA is installed into the gas line ahead of sensitive or hazardous equipment to protect it from being exposed to an internal ignition source. The  series of stainless steel grid assemblies combined with our practically indestructible Alumina Ceramic flame cell media, we can offer the ultimate protection available.
